0-331-07 50m Roll Nylon Convoluted Split Tubing 7.5NW

£35.74  Excl. VAT
  (£42.89 Inc. VAT)
RRP:  £40.16  Excl. VAT
Initial Savings:  £4.42
Earn 35 Loyalty Points
Available


Weight:  760 g





Model:  0-331-07
Bar Code:  5056119108354
Part Number:  0-331-07
Brand:  Durite
Size  7.5NW
Colour  Black
Material  Nylon

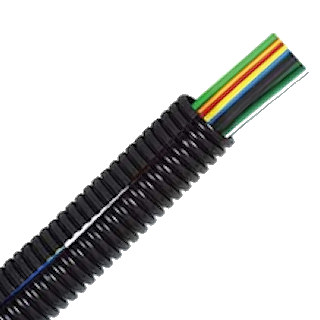

 50m roll, black nylon convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 7.5 (nominal width 7.5mm).
  • Inside diameter: 6.7mm, outside diameter: 10.0mm.
  • Pack quantity: 50 metre roll.
  • Colour: black.
  • Material: nylon.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 7.5mm
Inside diameter (ID) 6.7mm
Outside diameter (OD) 10.0mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
