0-331-10 50m Roll Nylon Convoluted Split Tubing 10NW

£41.10  Excl. VAT
  (£49.32 Inc. VAT)
RRP:  £46.18  Excl. VAT
Initial Savings:  £5.08
Earn 41 Loyalty Points
Available


Weight:  1.20 kg





Model:  0-331-10
Bar Code:  5056119108361
Part Number:  0-331-10
Brand:  Durite
Size  10NW
Colour  Black
Material  Nylon

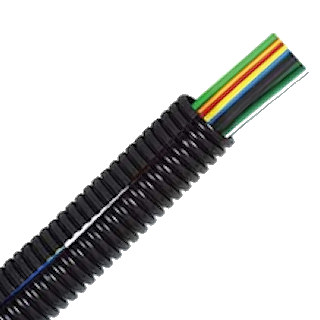

 50m roll, black nylon convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 10 (nominal width 10mm).
  • Inside diameter: 9.9mm, outside diameter: 13.0mm.
  • Pack quantity: 50 metre roll.
  • Colour: black.
  • Material: nylon.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 10.0mm
Inside diameter (ID) 9.9mm
Outside diameter (OD) 13.0mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
