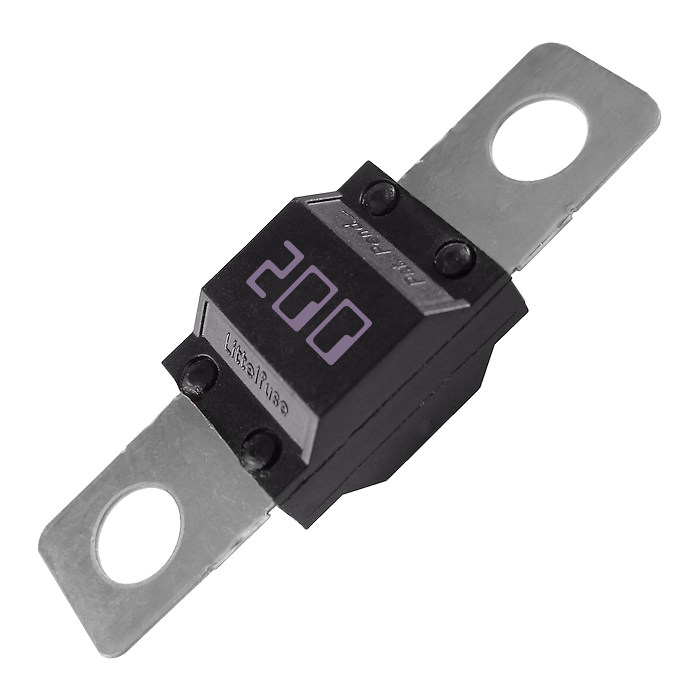

0-378-33 Violet MIDI Link Fuse - 200A

£1.76  Excl. VAT
  (£2.11 Inc. VAT)
RRP:  £2.02
Savings before Cart:  £0.26
Earn 1 Loyalty Points
Available


Weight:  10 g


Model:  0-378-33
Bar Code:  5056119110821
Part Number:  0-378-33
Brand:  Durite
Colour:  Violet
Voltage:  32V DC Max.
Amperage:  200A
Material:  Copper/Tin/Thermoplastic


 Durite brand and Littelfuse manufactured industry-standard and OEM quality 200 Amps violet MIDI® type fuse, designed for medium-duty circuit protection when high loads and medium gauge automotive cables are used.

  • Colour coded: Violet.
  • 200A continuous use.
  • 400A blow rating.
  • Interrupting rating: 1000A at 32Vdc.
  • Voltage rating: 32Vdc.
  • Operating temperature range: -40 to 125℃.
  • Tin plated copper terminal.
  • Thermoplastic housing.
  • Mounting torque M5: 4.5Nm plus or minus 1Nm.
  • Complies with ISO 8820-5, UL 248 special purpose fuses.

Fits Fuse Holder Part Numbers

  • 0-378-85 MIDI® fuse holder

Dimensions

  • Length: 41mm.
  • Body width: 12mm.
  • Blade width: 10mm.
  • 5.50mm (M5 bolt) hole centers: 30mm.

About the 200 Amps MIDI® Type Fuses

 200A violet colour coded bolt down MIDI® type fuse from the Durite range of automotive fuses, ideal for battery and alternator protection on vehicles and industrial equipment.

 The 200A continuous rating gives high current circuit protection on auto electric equipment connected close to the battery source, including medium gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 400A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type MIDI® type fuse
Voltage To 32 Volts DC
Interrupting Rating 1000A at 32Vdc
Colour code Violet
Current rating 200 Amps continuous
Blow rating (from cold) 400 Amps intermittent
Body Material PA66-GF25 (U.L. 94 Flammability rating – V0)
Terminal Tin-plated Copper
Operating temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Mounting Torque M5 4.5 Nm +/- 1Nm
Complies with Standard UL 248-1 as a Special Purpose Fuses in UL file E71611 (40-100A) and Directive 2011/65/EU
Refers to ISO 8820-5:2003
Weight 10g
