0-331-22 50m Roll Nylon Convoluted Split Tubing 22NW

£93.88  Excl. VAT
  (£112.66 Inc. VAT)
RRP:  £105.48  Excl. VAT
Initial Savings:  £11.60
Earn 93 Loyalty Points
Available


Weight:  3.40 kg


Model:  0-331-22
Bar Code:  5056119108392
Part Number:  0-331-22
Brand:  Durite
Size  22NW
Colour  Black
Material  Nylon

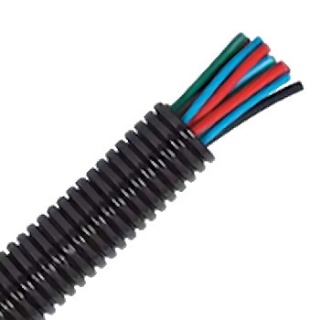

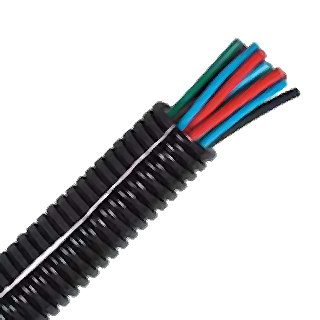

 50m roll, black nylon convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 22 (nominal width 22mm).

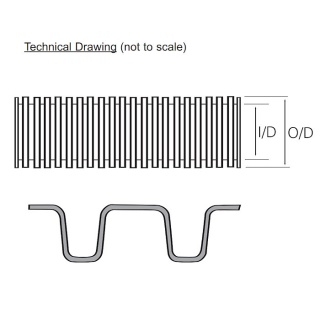

  • Inside diameter: 21.3mm, outside diameter: 25.4mm.
  • Pack quantity: 50 metre roll.
  • Colour: black.
  • Material: nylon.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 22.0mm
Inside diameter (ID) 21.3mm
Outside diameter (OD) 25.4mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
