Durite Yellow 6.30mm Fully Insulated Crimp Terminal | Re: 0-001-46

£5.66  Excl. VAT
  (£6.79 Inc. VAT)
RRP:  £6.51  Excl. VAT
Savings before Cart:  £0.85
Earn 5 Loyalty Points
Available


Weight:  110 g


Model:  0-001-46
Bar Code:  5056119100440
Part Number:  0-001-46
Brand:  Durite
Colour:  Yellow
Material:  Brass/Tin/PVC

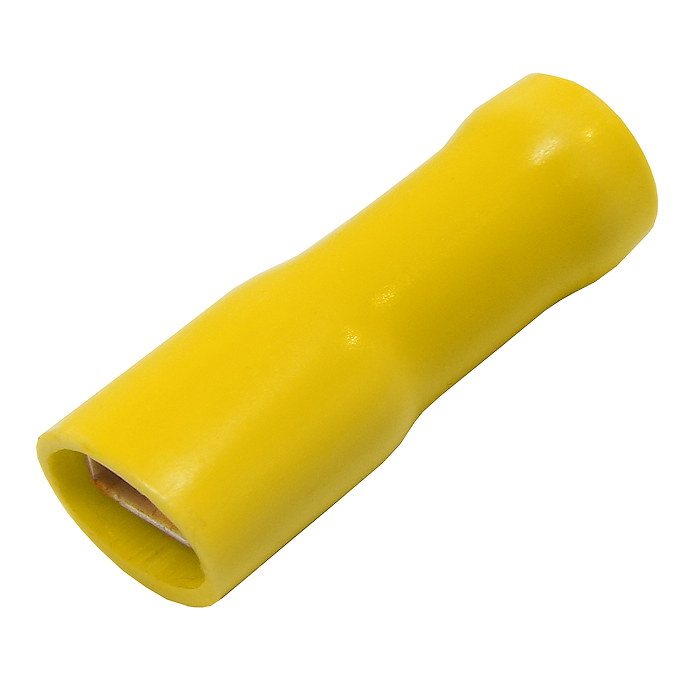

 Durite coloured insulated automotive female push-on terminal.

  • Conductor size: 3mm² to 6.0mm² (44-84 0.30mm).
  • Colour coded: yellow.
  • Push-on size: 6.30mm.
  • To suit medium to heavier duty automotive cable.
  • Fits spade connectors 0-001-28.
  • Pack quantity: 50, 100 and 1000 pieces.

About The Yellow Insulated Female Spade Crimp Terminal

 The fully insulated 6.3mm yellow female spade terminal (based on the Lucar style of terminals) is used for joining automotive electric cables. The female terminal mates with the 6.30mm male spade or blade terminals and components that have a 6.3mm spade termination. Female insulated blade receptacles allow for easy assembly and disassembly of a wiring loom and components.

 Reliable Durite brass crimping female blade terminals with a yellow PVC sleeve to effect a secure crimp connection. The cost of the terminals are competitive with lower quality coloured crimp terminals and offer great value for money.

Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.
