0-330-17 50m Roll Nylon Heavy-Duty Convoluted Un-split Tubing 17NW

£117.39  Excl. VAT
  (£140.87 Inc. VAT)
RRP:  £131.90  Excl. VAT
Initial Savings:  £14.51
Earn 117 Loyalty Points
Available


Weight:  3.16 kg


Model:  0-330-17
Bar Code:  5056119108248
Part Number:  0-330-17
Brand:  Durite
Size  17NW
Colour  Black
Material  Nylon

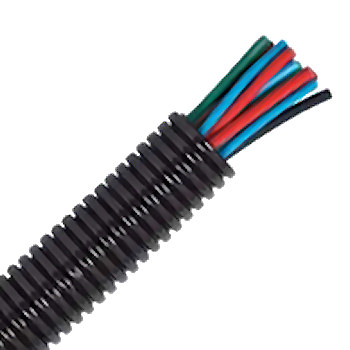

 50m roll, black nylon heavy duty auto electrical convoluted un-split tubing.

  • Sealed to protect cables and looms against external elements.
  • NW: 17.
  • Inside diameter: 16.6mm.
  • Outside diameter: 21.2mm.
  • Pack quantity: 50m roll.
  • Colour: black.
  • Material: nylon.

About The NW 17 Unsplit Tubing

 NW17 (nominal width 17mm) tubes used to create electric cable runs throughout a vehicle and held in place with nylon chassis clamps.

 T-pieces, Y-pieces and 90° joints can be used with the automotive conduit to give a clean and tidy (along with protected) navigation around vehicle parts and components.

Specifications

Type Convoluted un-split tubing
Application Protection of cable
Nominal width (NW) 17.0mm
Inside diameter (ID) 16.6mm
Outside diameter (OD) 21.2mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
