SW80-374P Albright Single-acting Solenoid Contactor 12V Intermittent Sealed IP66

SW80-374P Albright Single-acting Solenoid Contactor 12V Intermittent Sealed IP66
SW80-374P Albright Single-acting Solenoid Contactor 12V Intermittent Sealed IP66
SW80-374P Albright Single-acting Solenoid Contactor 12V Intermittent Sealed IP66
SW80-374P Albright Single-acting Solenoid Contactor 12V Intermittent Sealed IP66
£38.95 Excl. VAT
(£46.74 Inc. VAT)
Earn 38 Loyalty Points

No stock
Model
SW80-374P
Bar Code
DNA
Part Number
SW80-374P
Brand
Albright
Colour
Black
Voltage
12V DC
Amperage
100A
Material
Copper/Silver/Bakelite
Coil type
Intermittent
IP Protection
IP66
Weight
400 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

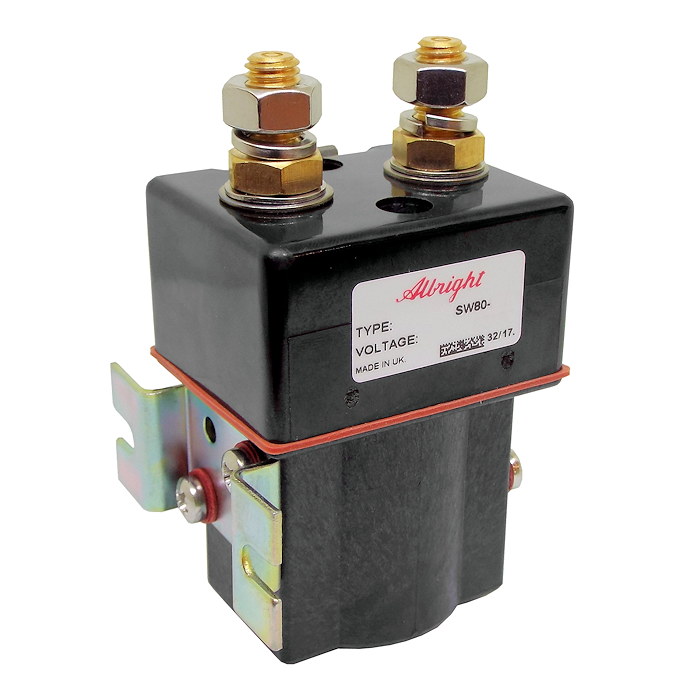

 Albright SW80-374P 12Vdc single-acting (SPST) solenoid contactor, intermittent.

  • Sealed to IP66 for weatherproofing and are suitable for internal marine applications.
  • The SW80 series of contactors has been designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld-resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches.
  • Repair contact kits are not available for this unit due to the weatherproofing.

Dimensions

  • Height, including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

About Intermittent (Int.) SW80 Solenoids

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles. They make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The Albright SW80-374P 12 Volts DC single-acting SPST 100 Amps solenoid contactor is designed for direct current loads. Its Silver-alloy contact tips are weld resistant and hardwearing. This cost-effective contactor is excellent for small electric vehicle motors, light industrial trucks, and powered invalid cars.

 With its double-breaking contacts and reliable conductivity, the Albright SW80-374P contactor is the perfect choice for your DC load needs. It is also sealed to IP66 for weatherproofing, making it suitable for internal marine applications. Plus, its economical price makes it a great value option compared to sealed automotive-style solenoid switches.

 The SW80P contactors, by design, has M8 stud main terminals on the top cover and coil energising 6.3mm spade terminals that exit up through the top cap and are internally wire connected from the coil. Mounted using supplied brackets, the mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
12V D.C.
Coil Type
Intermittent
Amps
100 Amps
Coil Resistance (Ohms)
9
Pull In Voltage (V)
8.0 Max.
Drop Out Voltage (V)
3.0 Max.
Coil Power Dissipation (W)
16.0
Typical Pull-In Time
20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
< 40mV
Operating Ambient Temperature
-40 to +60℃
Protection
IP66
Guideline Weight
390g
Application
Interrupted
Uninterrupted
Thermal Current Rating
100A
125A
Intermittent Current Rating


30% Duty
185A
230A
40% Duty
160A
200A
50% Duty
140A
175A
60% Duty
130A
160A
70% Duty
120A
150A



Replacement Guide

  • Albright: SW80-125
