SW80-111 Albright Single-acting Solenoid Contactor 110V Continuous

£40.51 Excl. VAT

(£48.61 Inc. VAT)

Earn 40 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks

Model

SW80-111

Bar Code

DNA

Part Number

SW80-111

Brand

Albright

Colour

Black

Voltage

110V DC

Amperage

100A

Material

Copper/Silver/Bakelite

Coil type

Continuous

Intrastat HS Code 8536490000

Ship Weight

400 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

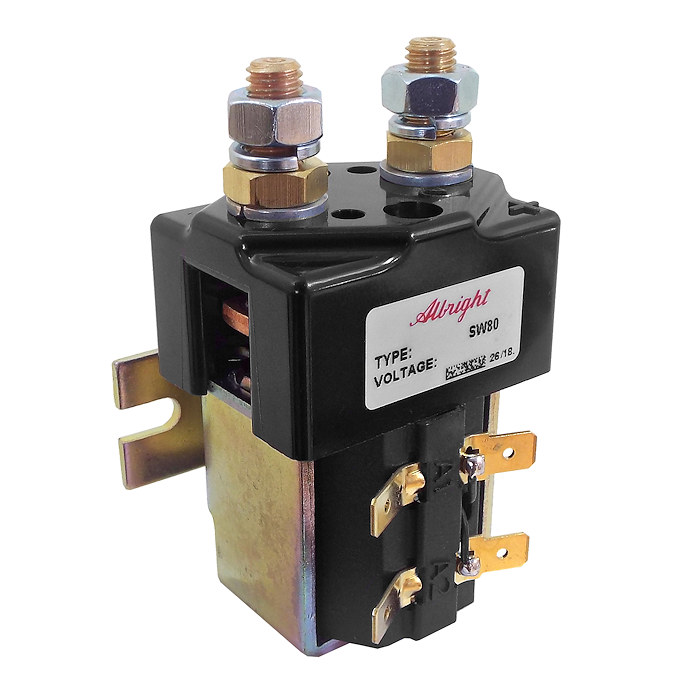

Albright SW80-111 single-acting solenoid contactor, 110V continuous with integral bracket.

The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc. They have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
Repair contact kit part number: 2070-57.
Auxiliary switch kit part number: 2070-124.

Dimensions

Height, including terminals and coil base cap: 94mm.
Coil width: 41mm.
Cap width: 50.5mm.
Cap depth: 39mm.

About Continuous (CO.) SW80 Solenoids

Continuous contactors, by design, are predominantly used for drive functions on vehicles. They make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	NO - SP - ST
Voltage	12V D.C.
Coil Type	Continuous
Amps	100 Amps
Coil Resistance (Ohms)	1290
Pull-In Voltage (V)	85.0 Max.
Drop Out Voltage (V)	28.0 Max.
Coil Power Dissipation (W)	9.38
Typical Pull-In Time	20ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	< 40mV
Operating Ambient Temperature	-40 to +60℃
Weight	430g

Application	Interrupted	Uninterrupted
Thermal Current Rating	100A	125A
Intermittent Current Rating:
30% Duty	185A	230A
40% Duty	160A	200A
50% Duty	140A	175A
60% Duty	130A	160A
70% Duty	120A	150A
