SW80-5 Albright Single-acting Solenoid Contactor 12V Continuous

£37.90  Excl. VAT
  (£45.48 Inc. VAT)
 Excl. VAT

Earn 37 Loyalty Points
7 in stock


Weight:  350 g


Model:  SW80-5
Bar Code:  DNA
Part Number:  SW80-5
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

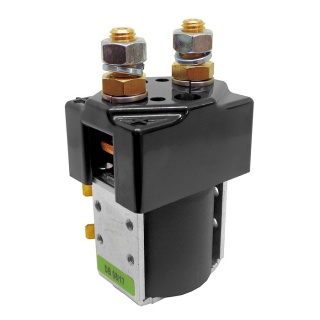

 Albright SW80-5 12Vdc 100A single-acting solenoid contactor, continuous.

  • The SW80 series of contactors has been designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld-resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
  • Repair contact kit part number: 2070-57.
  • Auxiliary switch kit part number: 2070-124.

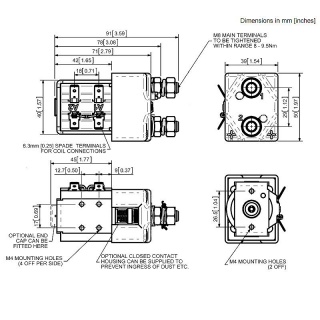

Dimensions

  • Height, including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

About Continuous (CO.) SW80 Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 12V D.C.
Coil Type Continuous
Amps 100 Amps
Coil Resistance (Ohms) 14
Pull-In Voltage (V) 8.0 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 10.29
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 350g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A



Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

2126-48A Albright SW80 and SW82 Solenoid Mounting Bracket
2126-48A Albright SW80 and SW82 Solenoid Mounting Bracket

Albright SW80 and SW82 single-acting solenoid bracket. Designed for mounting SW80 and SW82 solenoids to panels or bulkheads.

58 in stock
 Reference: 2126-48a £2.20
SW80-390P Albright Single-acting Solenoid Contactor 12V Continuous IP66
SW80-390P Albright Single-acting Solenoid Contactor 12V Continuous IP66

SW80-390P single-acting solenoid contactor, 12Vdc continuous and sealed to IP66. Suitable for marine application.

21 in stock
 Reference: SW80-390P £38.95
2070-124 Auxiliary Micro-switch for Albright SW Solenoid Contactors Caps
2070-124 Auxiliary Micro-switch for Albright SW Solenoid Contactors Caps

Auxiliary micro-switch for Albright contactors, fits: SW80 and SU80 series contactors excluding sealed type, fitting instructions included.

No stock
 Reference: 2070-124 £24.49
