SW80-2116L Albright Single-acting Solenoid Contactor 110V Continuous

£48.18  Excl. VAT
  (£57.82 Inc. VAT)
 Excl. VAT

Earn 48 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  350 g


Model:  SW80-2116L
Bar Code:  DNA
Part Number:  SW80-2116L
Brand:  Albright
Colour  Black
Voltage  110V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

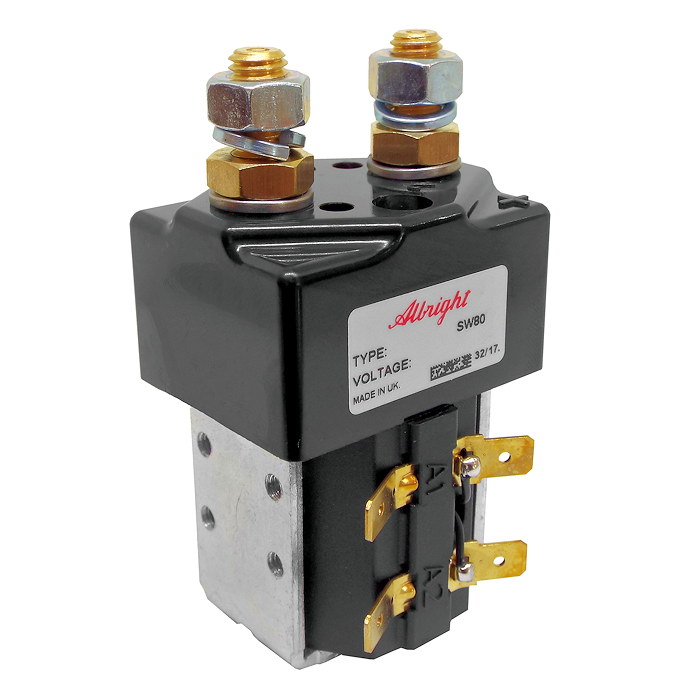

 Albright SW80-2116L 110 Volts DC single-acting (SPST) solenoid contactor with large tips and an enclosed top cover, continuous.

  • The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.; they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
  • This version has an enclosed top cover.
  • Repair contact kit part number: 2070-194.
  • Auxiliary switch kit part number: 2070-124.
  • Large tips fitted.

Dimensions

  • Height, including terminals and coil base cap: 94mm.
  • Coil width: 41mm.
  • Cap width: 50.5mm.
  • Cap depth: 39mm.

About Continuous (CO.) SW80 Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 110V D.C.
Coil Type Continuous
Amps 100 Amps
Coil Resistance (Ohms) 960
Pull-In Voltage (V) 85.0 Max.
Drop Out Voltage (V) 28.0 Max.
Coil Power Dissipation (W) 12.60
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 350g
Application Interrupted Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
