SW202N-317 Albright Double-acting Motor-reversing Solenoid 24V Intermittent
£273.18 Excl. VAT (£327.82 Inc. VAT)
Excl. VAT
Earn 273 Loyalty Points
| |
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 3.24 kg
Model: SW202N-317
Bar Code: DNA
Part Number: SW202N-317
Brand: Albright
Colour: Black
Voltage: 24V DC
Amperage: 250A
Material: Copper/Silver/Bakelite
Coil type: Intermittent
| Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

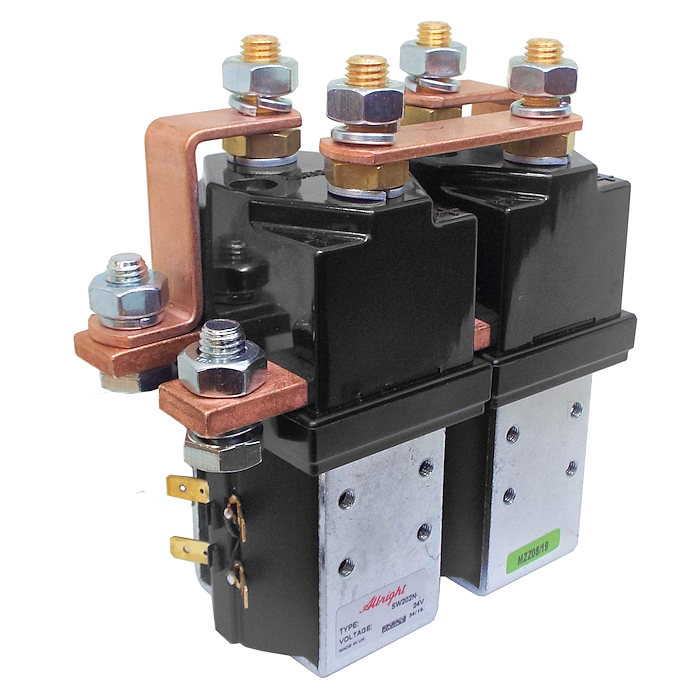

Albright SW202N-217 250 Amps double-acting strapped pair solenoid contactor, 24Vdc intermittent with enclosed top covers, no magnetic blowouts and no bracket.
- Paired and linked 12 Volts DC single-pole, double-throw (SPDT) switch solenoids.
- The SW202 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, warehouse forklifts, airport tractors, etc.
- The contactors are compact in size and are fully serviceable, with a range of spare parts available.
- Repair contact kit part number: 2155-136.
- Auxiliary switch kit part number: 2155-202 (1 kit does 1 x coil).
- Fitted without magnetic blowouts.
- Fitted with enclosed top covers.
- No bracket fitted.
Dimensions
- Height, including terminals and coil base cap: 152mm.
- Assembly width, including bars and bracket: 160.5mm.
- Cap width: 2 x 48mm.
- Total depth, including bracket: 82mm.
About The Intermittent SW202N-217 Reversing Contactors
Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they switch quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW202 is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW202 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity.
The SW202 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously, the contact arrangement is open circuits.
The SW202 has M10 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical. When vertical, the M10 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | Paired SPDT |
| Voltage | 24V D.C. |
| Coil Type | Intermittent |
| Amps | 250A |
| Coil Resistance (Ohms) | 15 |
| Pull-In Voltage (V) | 12.0 Max. |
| Drop Out Voltage (V) | 6.0 Max. |
| Coil Power Dissipation (W) | 38.40 |
| Typical Pull-In Time | 40ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | NO: 40mV
NC: 40mV |
| Operating Ambient Temperature | -40 to +60℃ (guide) |
| Guideline Weight | 3.35kg |
| Application | Uninterrupted |
| Thermal Current Rating | 250A |
| Intermittent Current Rating: |
| 30% Duty | 450A |
| 40% Duty | 390A |
| 50% Duty | 360A |
| 60% Duty | 320A |
| 70% Duty | 300A |
