SW202N-14 Albright Double-acting Motor-reversing Solenoid 24V - Intermittent

£271.50  Excl. VAT
  (£325.80 Inc. VAT)
 Excl. VAT

Earn 271 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  3.24 kg


Model:  SW202N-14
Bar Code:  DNA
Part Number:  SW202N-14
Brand:  Albright
Colour  Black
Voltage  24V DC
Amperage  250A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

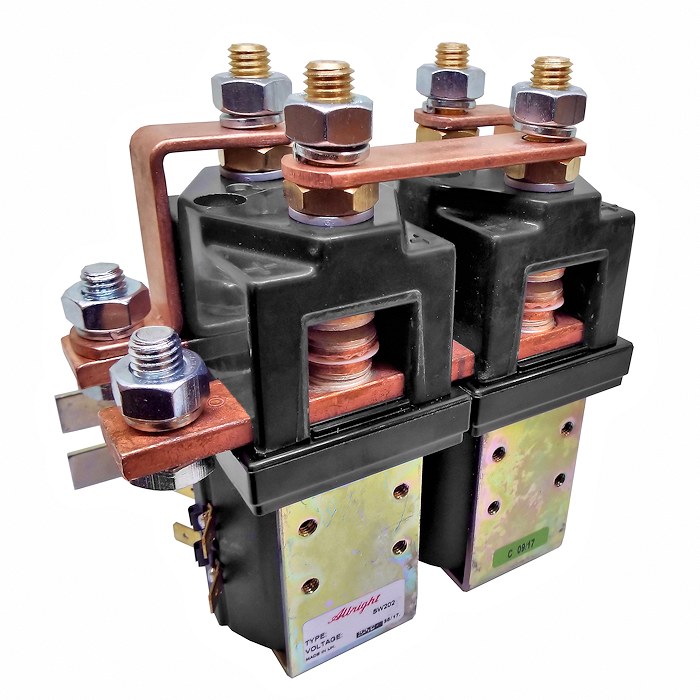

 Albright SW202N-14 double-acting 24Vdc 250 Amps strapped pair contactor for hydraulic motor-reversing, with intermittent coils and no magnetic blowouts.

  • Paired and linked 24 Volts DC single-pole, double-throw (SPDT) switch solenoids.
  • The SW202 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, warehouse forklifts, airport tractors, etc.
  • The contactors are compact in size and are fully serviceable, with a range of spare parts available.
  • Repair contact kit part number: 2155-136.
  • Auxiliary switch kit part number: 2155-202 (1 kit does 1 x coil).
  • No magnetic blowouts fitted.

Dimensions

  • Height including terminals and coil base cap: 152mm.
  • Assembly width including bars and bracket: 160.5mm.
  • Cap width: 2 x 48mm.
  • Total depth including bracket: 82mm.

About The Intermittent (INT.) SW202N-14 Reversing Contactors

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they switch quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW202 is a configuration of two 'Single Pole, Double Throw' type contactors on a common bracket for motor reversing. The SW202 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity.

 The SW202 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits.

 The SW202 has M10 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type Paired SPDT
Voltage 24V D.C.
Coil Type Intermittent
Amps 250A
Coil Resistance (Ohms) 15
Pull-In Voltage (V) 13.0 Maximum
Drop Out Voltage (V) 6.0 Maximum
Coil Power Dissipation (W) 38.40
Typical Pull-In Time 40ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: 40mV
NC: 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 3.35kg
Application Uninterrupted
Thermal Current Rating 250A
Intermittent Current Rating:
30% Duty 450A
40% Duty 390A
50% Duty 360A
60% Duty 320A
70% Duty 300A
