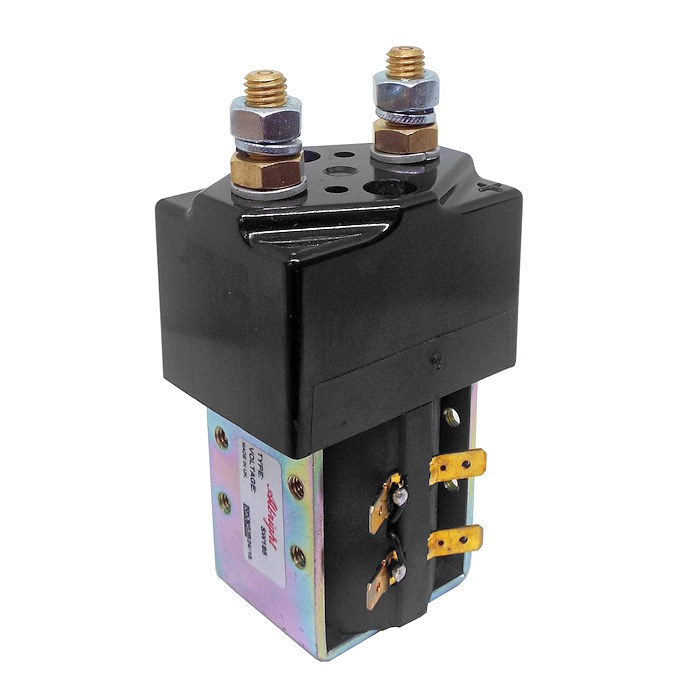

SW185-205 Albright 12V DC Single Acting Normally Closed Continuous Solenoid

£50.48  Excl. VAT
  (£60.58 Inc. VAT)


Earn 50 Loyalty Points
Pre-order
Despatch: 6 to 8 weeks.

Weight:  650g


Model:  SW185-205
Part Number:  SW185-205
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back ordering is available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 SW185-205 Single acting 'Normally Closed' 12V contactor continuous.

  • The SW185 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
  • Mounting bracket is available: 2159-47.

Dimensions

  • Height including terminals and coil base cap: 122mm.
  • Coil width: 45mm.
  • Cap width: 61mm.
  • Cap depth: 45mm.

About Continuous Normally Closed (CO.) SW185 Solenoids

 Normally Closed continuous contactors by design are for an ‘Always On’ line function and break only when the coil is energised, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 Please note: Normally Closed contacts are not suited to make and break load.

Specifications

Device Type SW185 SPST NC
Voltage 12V DC
Coil Type Continuous
Amps 150 amp
Coil Resistance (Ohms) 13
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 11.08
Typical Pull-In Time 30ms
Typical Voltage Drop per pole
across New Contacts at 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 650g
Application Interrupted - Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A
