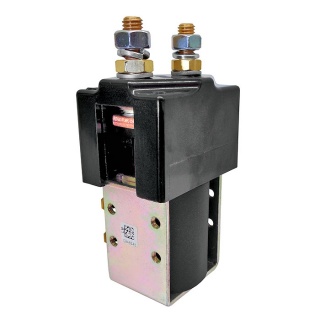

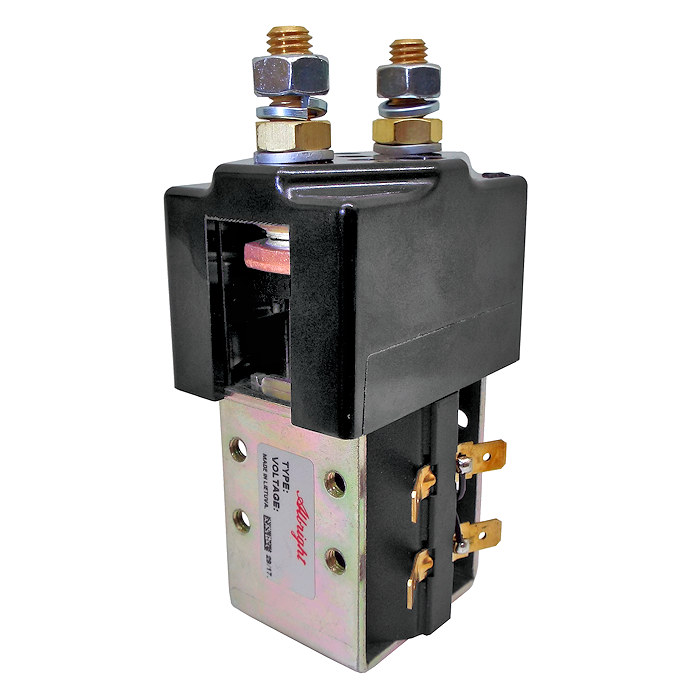

SW185-192 Albright 12V DC Normally Closed Solenoid Contactor - Intermittent

£67.26  Excl. VAT
  (£80.71 Inc. VAT)
 Excl. VAT

Earn 67 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  650 g





Model:  SW185-192
Bar Code:  DNA
Part Number:  SW185-192
Brand:  Albright
Colour  Black
Voltage  12V DC
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

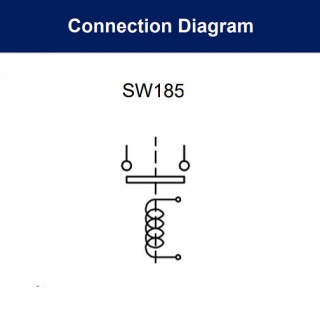

 SW185-192 single-acting 'Normally Closed' 12V intermittent contactor.

  • The sw185 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • Mounting bracket is available: 2159-47.

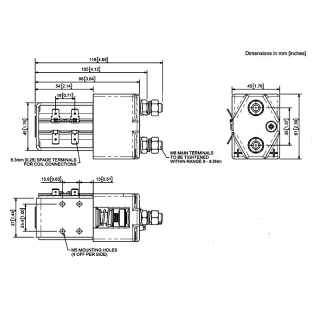

Dimensions

  • Height including terminals and coil base cap: 122mm.
  • Coil width: 45mm.
  • Cap width: 61mm.
  • Cap depth: 45mm.

About Intermittent (INT.) Normally Closed SW185 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW185 features single pole, single throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW185 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or mounting brackets supplied as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

 Please note: Normally Closed contacts are not suited to make and break load.

Specifications

Device Type SW185 SPST NC
Voltage 12Vdc
Coil Type Intermittent
Amps 150 Amps
Coil Resistance (Ohms) 4
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 4.0 Maximum
Coil Power Dissipation (W) 36.00
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 650g
Application Uninterrupted
Thermal Current Rating 150A
Intermittent Current Rating:
30% Duty 275A
40% Duty 240A
50% Duty 225A
60% Duty 200A
70% Duty 180A







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.


Related Products
SW185-108 Albright 48V DC Normally Closed Solenoid Contactor - Continuous
SW185-108 Albright 48V DC Normally Closed Solenoid Contactor - Continuous

SW185-108 single-acting 48V 'normally closed' continuous contactor. Height from the coil base cap to the terminal top: 122mm.


Pre-order
Despatch: 9 to 12 WeeksReference: SW185-108 £67.26
SW185-139 Albright 12V DC Normally Closed Solenoid Contactor - Continuous
SW185-139 Albright 12V DC Normally Closed Solenoid Contactor - Continuous

SW185-139 single-acting 12V 'normally closed' continuous contactor. Height from the coil base cap to the terminal top: 122mm.


Pre-order
Despatch: 9 to 12 WeeksReference: SW185-139 £67.26
SW185-14 Albright 24V DC Normally Closed Solenoid Contactor - Intermittent
SW185-14 Albright 24V DC Normally Closed Solenoid Contactor - Intermittent

SW185-14 single-acting 24V 'normally closed' intermittent contactor. Height from the coil base cap to the terminal top: 122mm.


Pre-order
Despatch: 9 to 12 WeeksReference: SW185-14 £67.26
SW185-140 Albright 24V DC Normally Closed Solenoid Contactor - Continuous
SW185-140 Albright 24V DC Normally Closed Solenoid Contactor - Continuous

SW185-140 single-acting 24V 'normally closed' continuous contactor. Height from the coil base cap to the terminal top: 122mm.


Pre-order
Despatch: 9 to 12 WeeksReference: SW185-140 £67.26
SW185-16 Albright 24V DC Single-acting Normally Closed Intermittent Solenoid
SW185-16 Albright 24V DC Single-acting Normally Closed Intermittent Solenoid

SW185-16 single-acting 24V 'normally closed' intermittent contactor. Height from the coil base cap to the terminal top: 122mm.


Pre-order
Despatch: 9 to 12 WeeksReference: SW185-16 £67.26

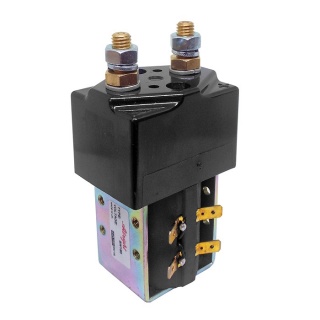

SW185-205 Albright 12V DC Single-acting Normally Closed Continuous Solenoid
