SW185-14 Albright 24V DC Normally Closed Solenoid Contactor - Intermittent
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 650 g
Model: SW185-14
Bar Code: DNA
Part Number: SW185-14
Brand: Albright
Colour Black
Voltage 24V DC
Material Copper/Silver/Bakelite
Coil type Intermittent
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

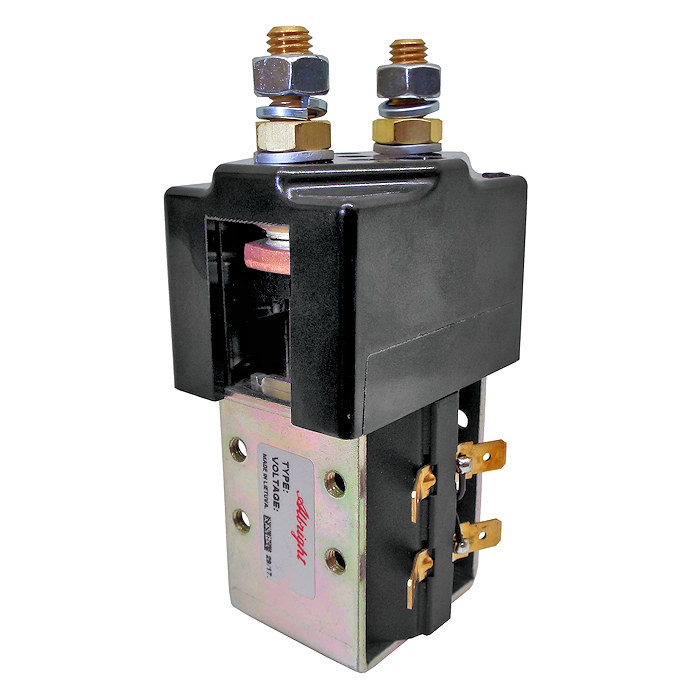

SW185-14 single-acting 'Normally Closed' 24V intermittent contactor.
- The sw185 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- Mounting bracket is available: 2159-47.
Dimensions
- Height including terminals and coil base cap: 122mm.
- Coil width: 45mm.
- Cap width: 61mm.
- Cap depth: 45mm.
About Intermittent (INT.) Normally Closed SW185 Solenoids
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW185 features single pole, single throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW185 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or mounting brackets supplied as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Please note: Normally Closed contacts are not suited to make and break load.
Specifications
| Device Type | SW185 SPST NC |
| Voltage | 24Vdc |
| Coil Type | Intermittent |
| Amps | 150 Amps |
| Coil Resistance (Ohms) | 17 |
| Pull-In Voltage (V) | 16.0 Maximum |
| Drop Out Voltage (V) | 6.0 Maximum |
| Coil Power Dissipation (W) | 33.88 |
| Typical Pull-In Time | 30ms |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 30mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 650g |
| Application | Uninterrupted |
| Thermal Current Rating | 150A |
| Intermittent Current Rating: |
| 30% Duty | 275A |
| 40% Duty | 240A |
| 50% Duty | 225A |
| 60% Duty | 200A |
| 70% Duty | 180A |
