SW180AB-51 Albright Single-acting Solenoid Contactor 48V Intermittent
Weight: 650 g
Bar Code: DNA
Part Number: SW180AB-51
Voltage 48V DC
Coil type Intermittent
Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

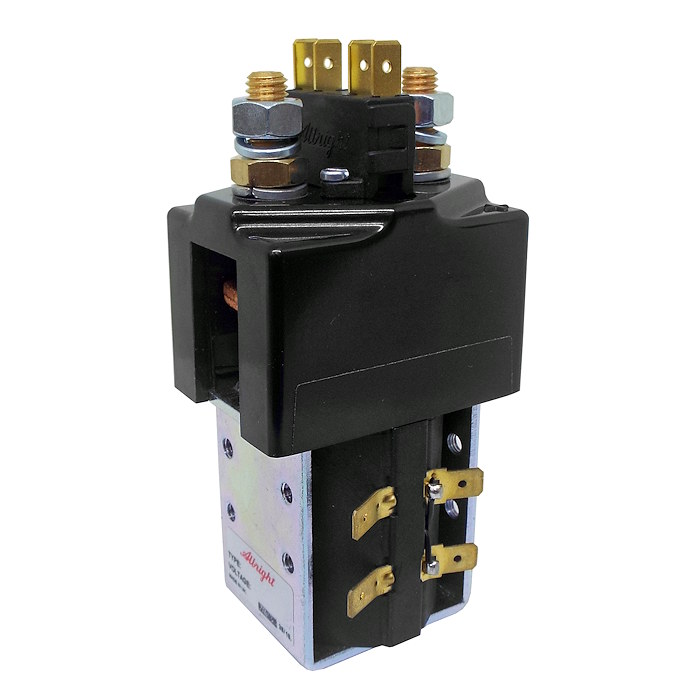

Albright SW180AB-51 single-acting 48Vdc 150 Amps contactor with auxiliary microswitch and magnetic blowouts, intermittent.
- The SW180AB series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- The contactors are compact in size and are fully serviceable, with a range of spare parts available.
- Repair contact kit part number: 2180-42.
- Auxiliary switch kit part number: 2180-796.
- Mounting bracket available: 2159-47.
Additional Characteristics to Standard SW180's
- Magnetic blowouts.
- Auxiliary microswitch.
- Height including switch and coil base cap: 127mm.
- Coil width: 45mm.
- Cap width: 61mm.
- Cap depth: 45mm.
These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW180AB range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.
About Intermittent (Int.) SW180AB Solenoids
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW180AB has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180B is suitable for switching Resistive, Capacitive and Inductive loads.
The SW180AB features single pole single throw, double-breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW180B has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
|Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
|Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
|Device Type ||SPST NO |
|Voltage ||48V D.C. |
|Coil Type ||Intermittent |
|Amps ||150 Amps |
|Coil Resistance (Ohms) ||73 |
|Pull-In Voltage (V) ||29.0 Max. |
|Drop Out Voltage (V) ||12.0 Max. |
|Coil Power Dissipation (W) ||31.56 |
|Typical Pull-In Time ||30ms |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|Operating Ambient Temperature ||-40 to +60℃ |
|Weight ||690g |
|Application ||Uninterrupted |
|Thermal Current Rating ||150A |
|Intermittent Current Rating: |
|30% Duty ||275A |
|40% Duty ||240A |
|50% Duty ||225A |
|60% Duty ||200A |
|70% Duty ||180A |
