SW180AB-52 Albright Single-acting Solenoid Contactor 48V Continuous
£63.46 Excl. VAT (£76.15 Inc. VAT) Excl. VAT
Earn 63 Loyalty Points
| |
Weight: 650 g
Model: SW180AB-52
Bar Code: DNA
Part Number: SW180AB-52
Brand: Albright
Colour: Black
Voltage: 48V DC
Amperage: 150A
Material: Copper/Silver/Bakelite
Coil type: Continuous
Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

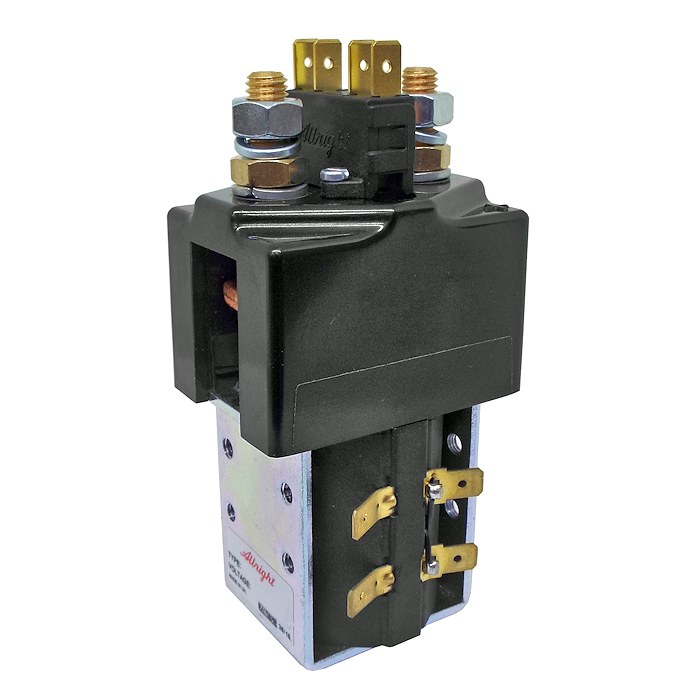

Albright SW180AB-48 48Vdc 150 Amps single-acting contactor with auxiliary microswitch and magnetic blowouts, continuous.
- The SW180AB series of contactors has been designed for direct current loads, particularly motors used on small electric vehicles such as industrial trucks, airport tractors, etc... They have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- The contactors are compact and fully serviceable, with a range of spare parts available.
- Repair contact kit part number: 2180-42.
- Auxiliary switch kit part number: 2180-796.
- Mounting bracket available: 2159-47.
Additional Characteristics of Standard SW180's
- Magnetic Blowouts.
- Auxiliary microswitch.
Dimensions
- Height, including switch and coil base cap: 127mm.
- Coil width: 45mm.
- Cap width: 61mm.
- Cap depth: 45mm.
Magnetic Blowouts
These contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW180AB range) across both contact gaps. These enable high currents to be ruptured quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the positive markings on the top cover of the contactor must be observed.
About Continuous (CO.) SW180AB Solenoids
Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW180AB has been designed for direct current loads, including motors on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180B is suitable for switching Resistive, Capacitive and Inductive loads.
The SW180AB features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW180B has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.
Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
Device Type | NO - SP - ST |
Voltage | 24V D.C. |
Coil Type | Continuous |
Amps | 150 Amps |
Coil Resistance (Ohms) | 44 |
Pull-In Voltage (V) | 16.0 Max. |
Drop Out Voltage (V) | 6.0 Max. |
Coil Power Dissipation (W) | 13.09 |
Typical Pull-In Time | 30ms |
Typical Voltage Drop Per Pole Across New Contacts At 100A | 30mV |
Operating Ambient Temperature | -40 to +60℃ |
Weight | 690g |
Application | Uninterrupted |
Thermal Current Rating | 150A |
Intermittent Current Rating: |
30% Duty | 275A |
40% Duty | 240A |
50% Duty | 225A |
60% Duty | 200A |
70% Duty | 180A |
