SU80-5164MPL Albright Single Acting 12V 150A Contactor - Intermittent
Weight: 350 g
Bar Code: DNA
Part Number: SU80-5164MPL
Voltage: 12V DC
Coil type: Intermittent
Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

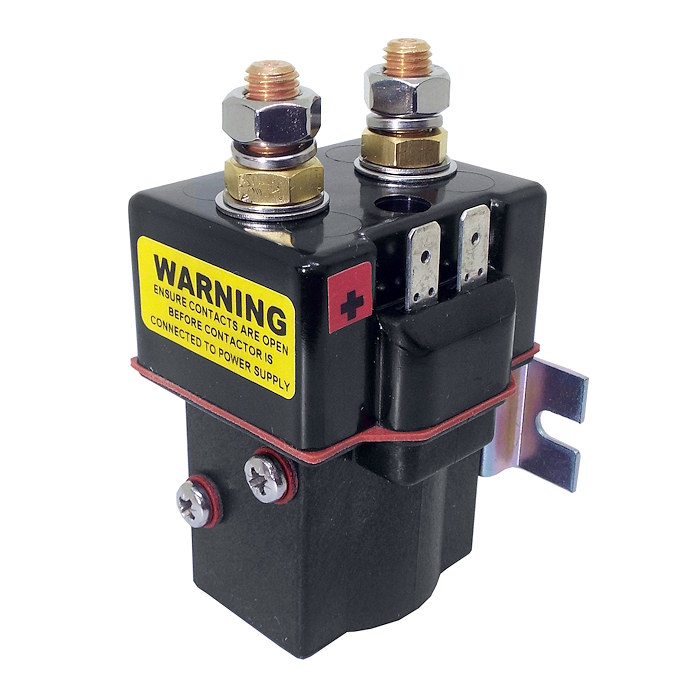

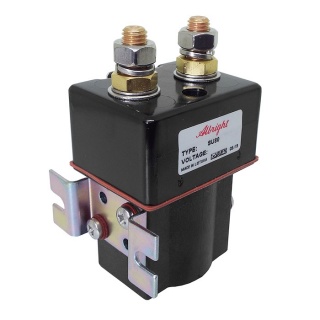

IP66 protected SU80-5164MPL single acting 12-volt dc 150 amp intermittent solenoid contactor, magnetically latched contactor with large silver alloy tips.
- The SU80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- Due to the sealed nature of this contactor, no repair kits are available.
- Fitted with a top hat mounting bracket.
- Large tip version.

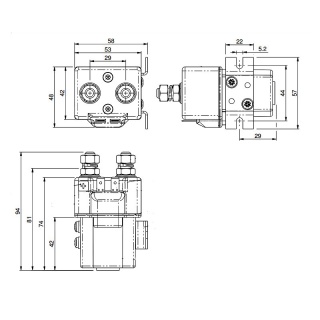

- Height including terminals and coil base cap: 94mm.
- Cap width: 53mm.
- Cap depth (including coil terminals): 48mm.
About Intermittent (Int.) SU80 Solenoids
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

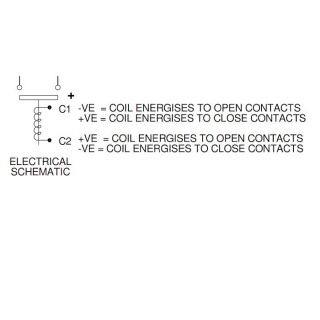

Magnetic Latching: Contact position is secured with the use of a permanent magnet within the coil assembly. The coil requires a pulse(~500ms) to close the contacts, and a reverse polarity pulse (~500ms) to operate the armature and open the contacts, but otherwise remains in the last energised state without the need for power. It should be noted therefore these are not failsafe.
The SU80 is an up-rated version of the SW80 Contactor designed for Interrupted and Uninterrupted loads. The SU80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the supplied mounting bracket. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
|Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance). |
|Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
|Device Type ||SU80 Magnetic |
|Voltage ||12V D.C. |
|Coil Type ||Intermittent |
|Amps ||150 amp |
|Coil Resistance (Ohms) ||7 |
|Pull-In Voltage (V) ||8.5 Maximum |
|Drop Out Voltage (V) ||8.5 Maximum |
|Coil Power Dissipation (W) ||20.57 |
|Typical Pull-In Time ||20ms |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|Operating Ambient Temperature ||-40 to +60℃ |
|Weight ||350g |
|Application ||Interrupted ||Uninterrupted |
|Thermal Current Rating ||150A ||200A |
|Intermittent Current Rating: |
|30% Duty ||275A ||365A |
|40% Duty ||235A ||315A |
|50% Duty ||210A ||280A |
|60% Duty ||190A ||260A |
|70% Duty ||180A ||240A |
