SU80-5161MP Albright Single-acting 12V 150A Contactor - Intermittent

SU80-5161MP Albright Single-acting 12V 150A Contactor - Intermittent
SU80-5161MP Albright Single-acting 12V 150A Contactor - Intermittent
SU80-5161MP Albright Single-acting 12V 150A Contactor - Intermittent
SU80-5161MP Albright Single-acting 12V 150A Contactor - Intermittent
£51.79 Excl. VAT
(£62.15 Inc. VAT)
Earn 51 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SU80-5161MP
Bar Code
DNA
Part Number
SU80-5161MP
Brand
Albright
Colour
Black
Voltage
12V DC
Amperage
150A
Material
Copper/Silver/Bakelite/Steel
Coil type
Intermittent
Weight
480 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

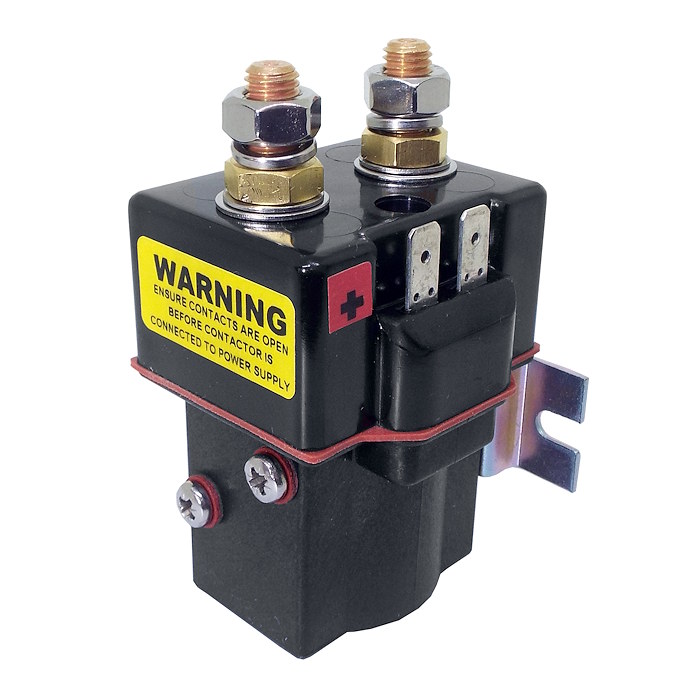

 Albright IP66 protected SU80-5161MP single-acting 12-volt dc 150 Amps magnetically latched contactor with Silver-alloy tips, intermittent.

  • The SU80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • Due to the sealed nature of this contactor, no repair kits are available.
  • Fitted with a top hat mounting bracket.

Dimensions

  • Height including terminals and coil base cap: 94mm.
  • Cap width: 53mm.
  • Cap depth (including coil terminals): 48mm.

About Intermittent (Int.) SU80 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 Magnetic Latching: The contact position is secured with the use of a permanent magnet within the coil assembly. The coil requires a pulse(~500ms) to close the contacts, and a reverse polarity pulse (~500ms) to operate the armature and open the contacts, but otherwise remains in the last energised state without the need for power. It should be noted therefore these are not failsafe.

 The SU80 is an up-rated version of the SW80 Contactor designed for Interrupted and Uninterrupted loads. The SU80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the supplied mounting bracket. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SU80 Magnetic
Latching Contactor
Voltage 12V D.C.
Coil Type Intermittent
Amps 150 Amps
Coil Resistance (Ohms) 7
Pull-In Voltage (V) 8.5 Maximum
Drop Out Voltage (V) 8.5 Maximum
Coil Power Dissipation (W) 20.57
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 350g
Application Interrupted Uninterrupted
Thermal Current Rating 150A 200A
Intermittent Current Rating:
30% Duty 275A 365A
40% Duty 235A 315A
50% Duty 210A 280A
60% Duty 190A 260A
70% Duty 180A 250A
