SU80-5002 Albright Single-acting 12V 150A Contactor - Intermittent

£41.85  Excl. VAT
  (£50.22 Inc. VAT)
 Excl. VAT

Earn 41 Loyalty Points
4 in stock


Weight:  350 g


Model:  SU80-5002
Bar Code:  DNA
Part Number:  SU80-5002
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  150A
Material  Copper/Silver/Bakelite/Steel
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

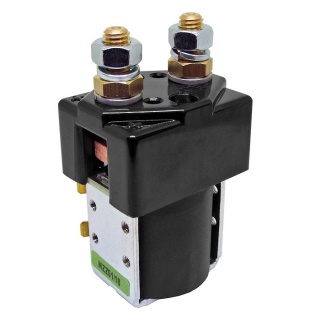

 Albright SU80-5002 single-acting 12Vdc 150 Amps solenoid contactor, intermittent coil.

  • The SU80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • Auxiliary switch kit part number: 2070-124.

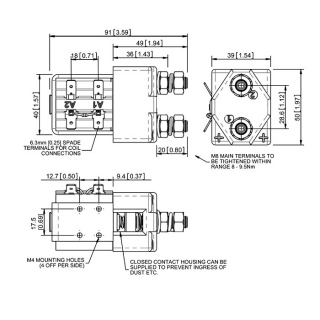

Dimensions

  • Height including terminals and coil base cap: 91mm.
  • Coil width: 40mm.
  • Cap width: 50mm.
  • Cap depth: 39mm.

About Intermittent (Int.) SU80 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SU80 is an up-rated version of the SW80 Contactor designed for Interrupted and Uninterrupted loads. The SU80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 12V D.C.
Coil Type Intermittent
Amps 150 Amps
Coil Resistance (Ohms) 9
Pull-In Voltage (V) 7.0 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 16.00
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 350g
Application Interrupted Uninterrupted
Thermal Current Rating 150A 200A
Intermittent Current Rating:
30% Duty 275A 365A
40% Duty 235A 315A
50% Duty 210A 280A
60% Duty 190A 260A
70% Duty 180A 240A



Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

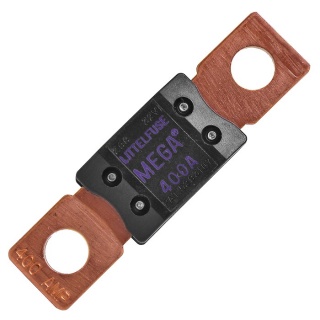

0-376-40 Purple MEGA Type Fuse 400A
