SU60-2005P Albright 12V DC Single-acting Miniature Solenoid Continuous 100A
£22.58 Excl. VAT (£27.10 Inc. VAT) Excl. VAT
Earn 22 Loyalty Points
| |
Weight: 210 g
Model: SU60-2005P
Bar Code: DNA
Part Number: SU60-2005P
Brand: Albright
Colour Black
Voltage 12V DC
Amperage 100A
Material Copper/Silver/Bakelite
Coil type Continuous
Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

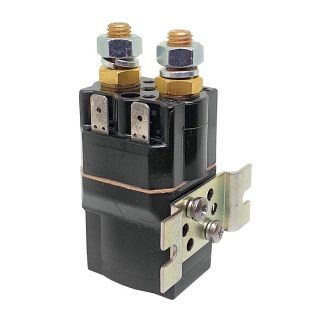

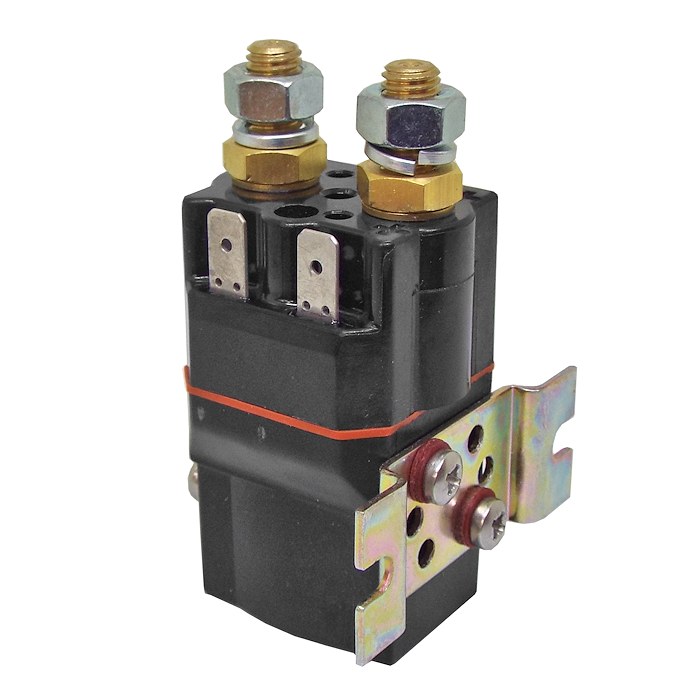

Albright SU60-2005P series miniature 12 Volts DC 100 Amps single-acting contactor, sealed to IP66, continuous.
- The SU60P is a high-rated freestanding compact contactor following the established design of the SW60P. It is sealed to IP66 and designed for direct current loads in more arduous environments.
- Devised for both interrupted and uninterrupted applications, the SU60P is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include motors used on small electric vehicles and hydraulic power packs.
- Due to its sealed nature and low cost, repair kits are unavailable for the SU60P.

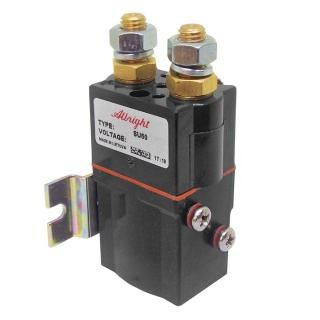

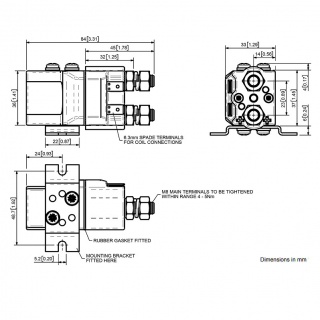

Dimensions
- Height, including terminals and coil base cap: 84mm.
- Coil width: 36mm.
- Cap width: 36mm.
- Depth: 33mm.
About Continuous (CO.) SU60P Solenoids
Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SU60P features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. It features an enclosed top cover and offers environmental protection to IP66. Mounted using supplied bracket, mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.
Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |

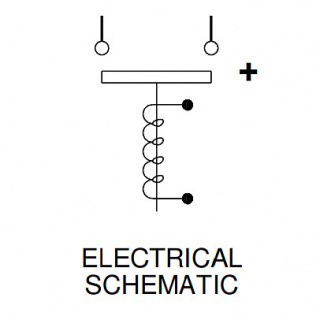

Specifications
Device Type | NO - SP - ST |
Voltage | 12V D.C. |
Coil Type | Continuous |
Amps | 100A |
Coil Resistance (Ohms) | 21 |
Pull-In Voltage (V) | 8.0 Max. |
Drop Out Voltage (V) | 3.5 Max. |
Coil Power Dissipation (W) | 6.86 |
Typical Pull-In Time | 15ms |
Typical Voltage Drop Per Pole Across New Contacts At 100A | < 50mV |
Operating Ambient Temperature | -40 to +60℃ (guide) |
Guideline Weight | 217g |
Application | Uninterrupted |
Thermal Current Rating | 100A |
Intermittent Current Rating: |
30% Duty | 180A |
40% Duty | 160A |
50% Duty | 140A |
60% Duty | 130A |
70% Duty | 120A |
