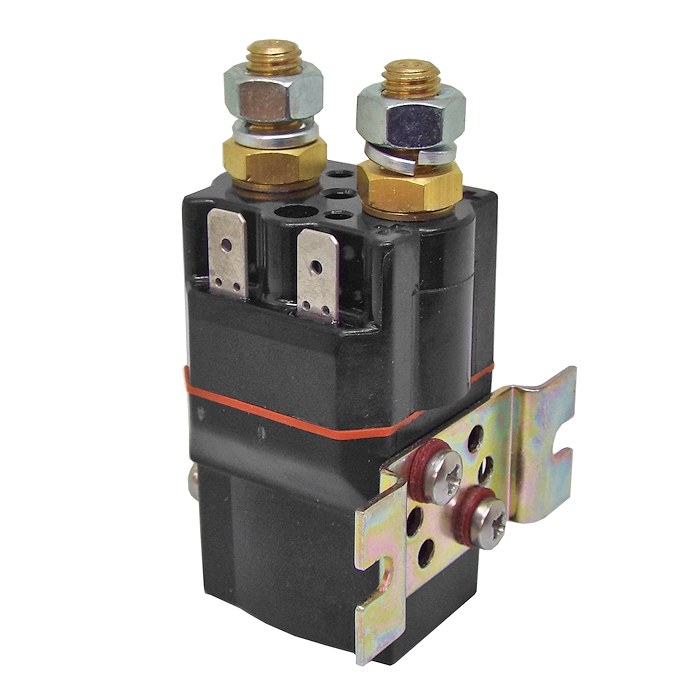

SU60-2013P Albright 24V DC Single Acting Miniature Solenoid Continuous 100A
Weight: 210 g
Bar Code: DNA
Part Number: SU60-2013P
Voltage: 24V DC
Coil type: Continuous
Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.
SU60-2013P series miniature 24 Volts DC 100 amp single acting contactor, sealed to IP66.
- The SU60P is a high rated freestanding compact contactor following the established design of the SW60P. It is sealed to IP66 and has been designed for direct current loads in more arduous environments.
- Devised for both interrupted and uninterrupted applications, the SU60P is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include motors as used on small electric vehicles and hydraulic power packs.
- Due to its sealed nature and low cost, repair kits are not available for the SU60P.
- Height including terminals and coil base cap: 84mm.
- Coil width: 36mm.
- Cap width: 36mm.
- Depth: 33mm.
About Continuous (CO.) SU60P Solenoids
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SU60P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. It features an enclosed top cover and offers environmental protection to IP66. Mounted using supplied bracket, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
|Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance). |
|Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
|Device Type ||SU60-2013P - SPST Contactor |
|Voltage ||24V D.C. |
|Coil Type ||Continuous |
|Amps ||100A |
|Coil Resistance (Ohms) ||100 |
|Pull-In Voltage (V) ||16.0 Maximum |
|Drop Out Voltage (V) ||6.0 Maximum |
|Coil Power Dissipation (W) ||5.76 |
|Typical Pull-In Time ||15ms |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|Less than 50mV |
|Operating Ambient Temperature ||-40 to +60℃ (guide) |
|Guideline Weight ||217g |
|Application ||Interrupted - Uninterrupted |
|Thermal Current Rating ||100A |
|Intermittent Current Rating: |
|30% Duty ||180A |
|40% Duty ||160A |
|50% Duty ||140A |
|60% Duty ||130A |
|70% Duty ||120A |
