SU60-2071 Albright 14V DC Single-acting Miniature Solenoid Continuous 100A

£23.65  Excl. VAT
  (£28.38 Inc. VAT)
 Excl. VAT

Earn 23 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  210 g


Model:  SU60-2071
Bar Code:  DNA
Part Number:  SU60-2071
Brand:  Albright
Colour  Black
Voltage  14V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

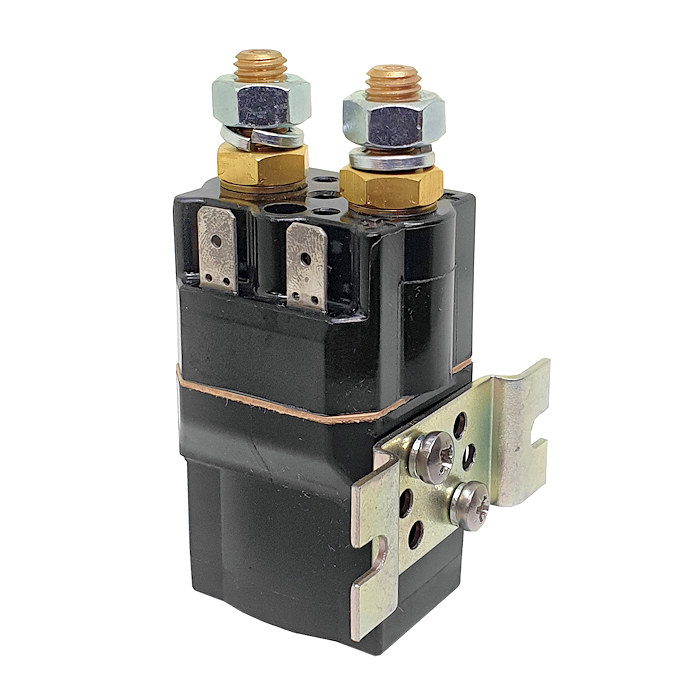

 Albright SU60-2071 series miniature 14 Volts DC 100 Amps single-acting contactor, continuous.

  • Albright SU60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.
  • Top hat mounting bracket 3060-94 fitted right-hand side.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

About Continuous (CO.) SU60 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SU60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU60 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST Contactor
Voltage 14V D.C.
Coil Type Continuous
Amps 100A
Coil Resistance (Ohms) 31
Pull-In Voltage (V) 9.0 Maximum
Drop Out Voltage (V) 3.5 Maximum
Coil Power Dissipation (W) 6.32
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Less than 50mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 217g
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 180A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
