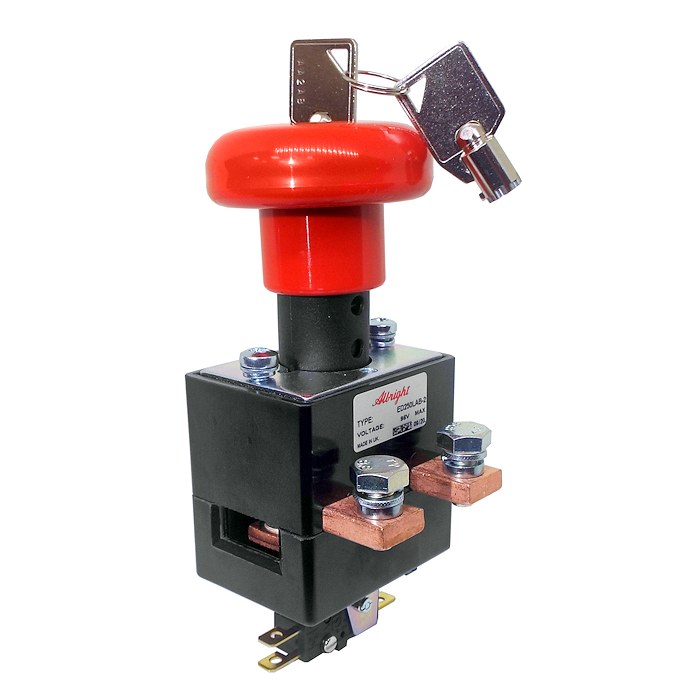

ED250LAB-2 Albright Emergency Disconnect Switch 250A - 96V Max. With Auxiliary

£71.62  Excl. VAT
  (£85.94 Inc. VAT)


Earn 71 Loyalty Points
Pre-order
Despatch: 6 to 8 Weeks

Weight:  550g


Model:  ED250LAB-2
Part Number:  ED250LAB-2
Brand:  Albright
Colour:  Red/Black
Voltage:  12V to 96V DC
Amperage:  250A
Material:  Copper/Silver/Bakelite

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


Albright heavy duty compact emergency battery disconnect switch, fitted with a lock, an auxiliary microswitch and magnetic blowouts.

  • Rated: 250A, 96V DC maximum.
  • Single pole, single throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • Suitable for voltages up to 96 volts dc, commonly used on 12, 24, 36, 48, 72, and 80 volts dc electric vehicle systems.

About The Albright ED250 Stop Switches

 The ED250 is a manually operated device with an over-centre spring mechanism which provides a snap action for both the opening and closing of the main contacts. The ED250 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.

 This build version of the ED250A emergency panic switch has an auxiliary microswitch installed in the base of the unit and is also fitted with magnetic blowouts.

 This lockable version features a key which is necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.

Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted
Device Type SPST Emergency Stop Switch
Thermal Current Rating (Ith) 250 amp
Intermittent Current Rating 30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A
Overload Currents
that can be Ruptured
1000A at 96V D.C.
Maximum Recommended
Contact Voltage
96V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 550g
