ED250A-2 Albright Emergency Disconnect Switch 250A - 48V Max. With Auxiliary

ED250A-2 Albright Emergency Disconnect Switch 250A - 48V Max. With Auxiliary
ED250A-2 Albright Emergency Disconnect Switch 250A - 48V Max. With Auxiliary
ED250A-2 Albright Emergency Disconnect Switch 250A - 48V Max. With Auxiliary
ED250A-2 Albright Emergency Disconnect Switch 250A - 48V Max. With Auxiliary
£65.33 Excl. VAT
(£78.40 Inc. VAT)
Earn 65 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
ED250A-2
Bar Code
DNA
Part Number
ED250A-2
Brand
Albright
Colour
Red/Black
Voltage
12V to 48V DC
Amperage
250A
Material
Copper/Silver/Bakelite
Weight
550 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

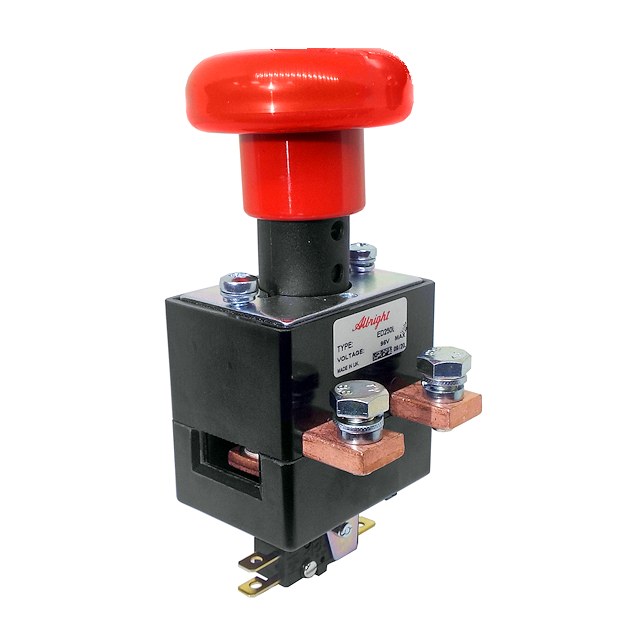

Albright heavy-duty compact emergency battery disconnect switch with an auxiliary microswitch.

  • Rated: 250A, 48Vdc maximum.
  • Single pole, single throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • Suitable for voltages up to 48 Volts DC, commonly used on 12 Volts, 24 Volts and 48 Volts DC electric vehicle systems.

About The Albright ED250 Stop Switches

 The ED250 is a manually operated device with an over-centre spring mechanism that provides a snap action for both the opening and closing of the main contacts. The ED250 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.

 This build version of the ED250A emergency panic switch has an auxiliary microswitch installed in the base of the unit.

A typical comment regarding its big red button appearance is that it is obnoxious, a very apt description, when you need to kill a circuit in an emergency you need the button to be obvious and obnoxious, many OEM's would agree, and will fit the Albright emergency switchgear as standard equipment.

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted
Device Type SPST Emergency Stop Switch
Thermal Current Rating (Ith) 250 Amps
Intermittent Current Rating 30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A
Overload Currents
that can be Ruptured
1000A at 48V D.C.
Maximum Recommended
Contact Voltage
48V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 500g
