ED125A-2 Albright Emergency Disconnect Switch 125A - 48V Max. With Auxiliary

£51.78  Excl. VAT
  (£62.14 Inc. VAT)
 Excl. VAT

Earn 51 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  420 g


Model:  ED125A-2
Bar Code:  DNA
Part Number:  ED125A-2
Brand:  Albright
Colour  Red/Black
Voltage  12V to 48V DC
Amperage  125A
Material  Copper/Silver/Bakelite

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

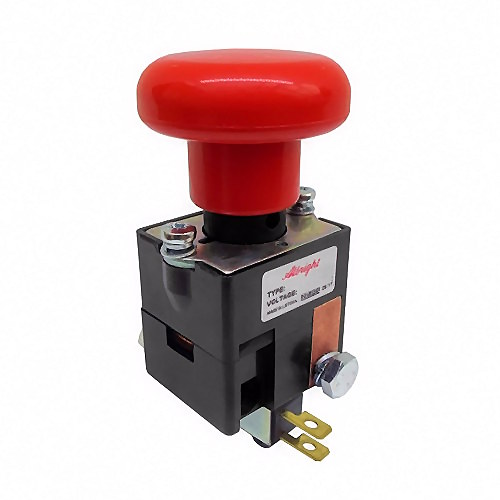

Albright 125A heavy-duty compact emergency battery disconnect switch with auxiliary microswitch.

  • Rated 125 Amps, 48Vdc maximum current.
  • Single pole, single throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • With an open housing for inspection of the contacts.

About the ED125A Emergency Stop Switch

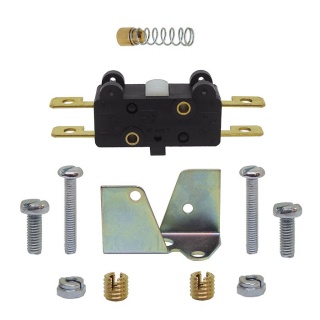

 This build version of the ED125A emergency panic switch has an auxiliary microswitch installed in the base of the unit.

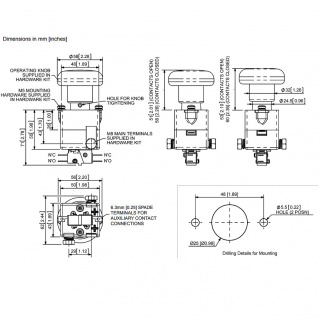

 Typically used on 12 Volts, 24 Volts and 48 Volts DC electric vehicle systems, the ED125 is a manually operated device with an over-centre spring mechanism, which provides a snap action for both opening and closing of the main contacts. The ED125 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted

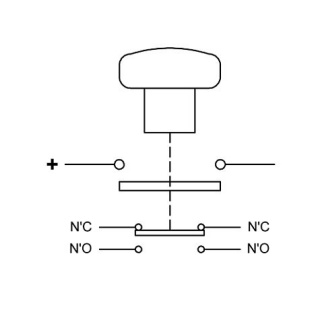

Device Type NC - SP - ST
Thermal Current Rating (Ith) 125 Amps
Intermittent Current Rating 30% Duty 230A
40% Duty 200A
50% Duty 175A
60% Duty 160A
70% Duty 150A
Overload Currents
that can be Ruptured
800A at 48V D.C.
Maximum Recommended
Contact Voltage
48V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 300g
