ED252-4 Albright Heavy-duty Emergency Stop Switch 250A 96V Maximum

ED252-4 Albright Heavy-duty Emergency Stop Switch 250A 96V Maximum
ED252-4 Albright Heavy-duty Emergency Stop Switch 250A 96V Maximum
ED252-4 Albright Heavy-duty Emergency Stop Switch 250A 96V Maximum
ED252-4 Albright Heavy-duty Emergency Stop Switch 250A 96V Maximum
£56.16 Excl. VAT
(£67.39 Inc. VAT)
Earn 56 Loyalty Points

1 in stock
Model
ED252-4
Bar Code
DNA
Part Number
ED252-4
Brand
Albright
Colour
Black/Red
Voltage
12V to 96V DC
Amperage
250A
Material
Copper/Silver/Bakelite
Weight
570 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of 9 to 12 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

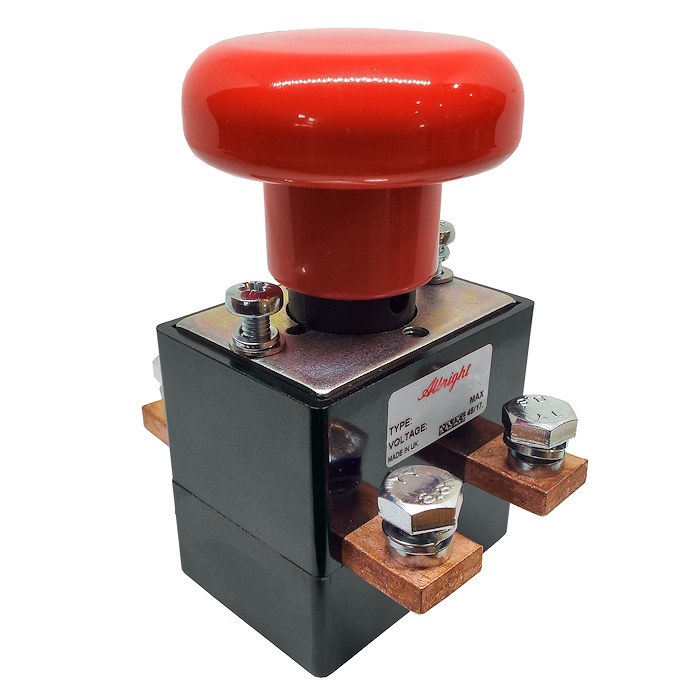

Albright heavy-duty battery disconnect switch with enclosed top cover.

  • Rated: 250A, 96Vdc maximum.

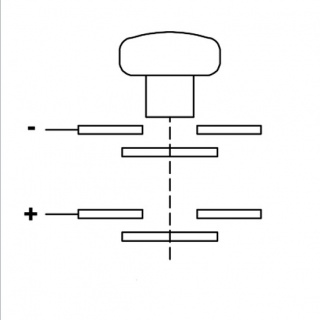

  • Double pole, single throw.
  • Two M5 fixing screws at 48mm centres.

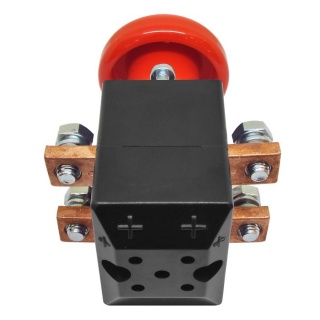

  • Four M8 hex bolts for battery cable fixing.
  • Typically used on 12V, 24V, 36V, 48V, 72V and 80Vdc electric vehicle systems.

About The ED252 Emergency Stop Switch

 The Albright emergency stop switchgear is a world leader in the electric vehicle market, due to its hardwearing and ease of inspection configuration.

 The ED252 range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for use with battery-powered vehicles they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.

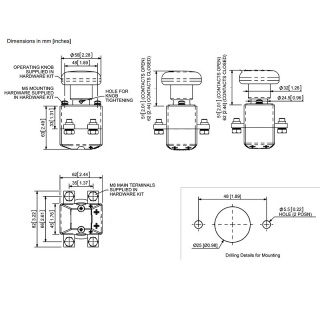

 The ED252 is a manually operated device with an over-centre spring mechanism that provides a snap action for both the opening and closing of the main contacts. The ED252 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted
Device Type DPST Emergency Stop Switch
Thermal Current Rating (Ith) 250 Amps
Intermittent Current Rating 30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A
Overload Currents
that can be Ruptured
1500A at 96V D.C.
Maximum Recommended
Contact Voltage
96V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 570g
