ED250L-4 Albright HD Emergency Stop Switch with Key 250A 48V Maximum
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 560 g
Model: ED250L-4
Bar Code: DNA
Part Number: ED250L-4
Brand: Albright
Colour Black/Red
Voltage 12V to 48V DC
Amperage 250A
Material Copper/Silver/Bakelite
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

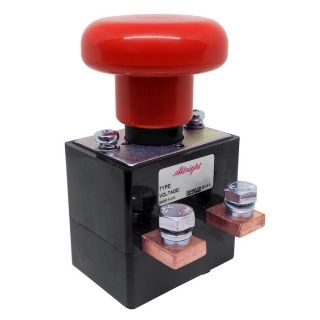

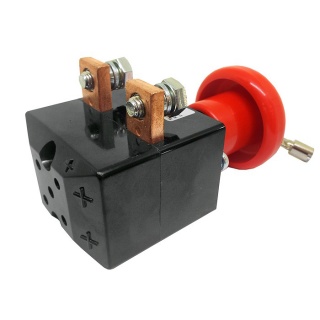

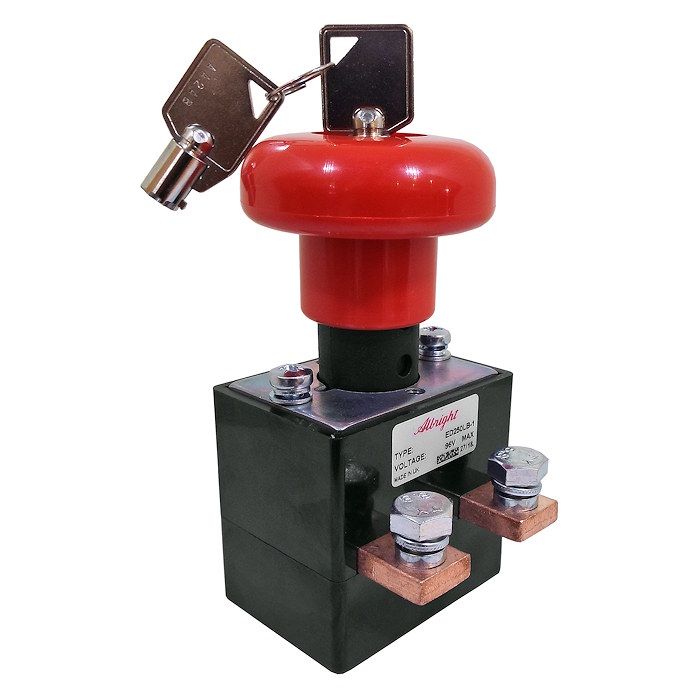

Albright heavy-duty battery disconnect switch with enclosed top cover and locking key.
- Rated: 250A, 48Vdc maximum.

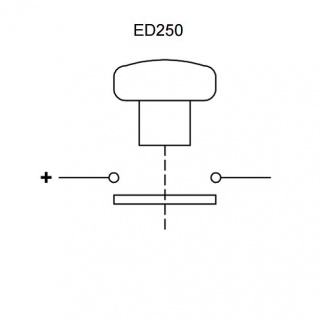

- Single pole, single throw.

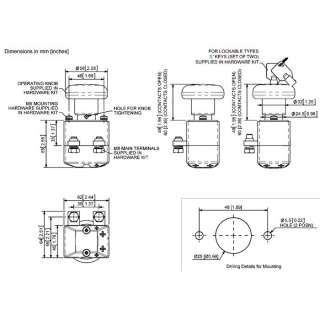

- Two M5 fixing screws at 48mm centres.
- Two M8 hex bolts for battery cable fixing.

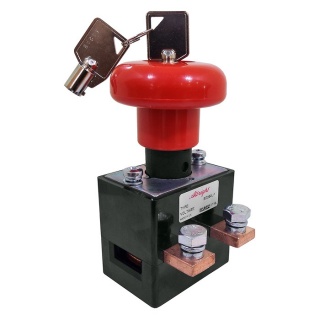

- Supplied with 2 keys.
- For these versions, a key is necessary for the knob to be moved from the off position to the on position.
| For a version without a lock, use ED250-4 |
About The Albright ED250L Stop Switches
Once in the 'ON' position, the switch key can be removed. Thereafter the knob may be depressed to the off position where it will automatically lock, remaining locked until the key is used again to unlock it. Suitable for voltages up to 48Vdc, commonly used on 12V, 24V and 48Vdc electric vehicle systems.
A typical comment regarding its big red button appearance is that it's obnoxious, a very apt description, when you need to kill a circuit in an emergency you need the button to be obvious and obnoxious. Many OEM's agree, and will fit the Albright emergency switchgear as standard equipment.
This lockable version features a key that is necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Application | Uninterrupted |
| Device Type | SPST Emergency Stop
Switch With Key |
| Thermal Current Rating (Ith) | 250 Amps |
| Intermittent Current Rating | 30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A |
Overload Currents
that can be Ruptured | 1000A at 48V D.C. |
Maximum Recommended
Contact Voltage | 48V D.C. |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 30mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 560g |
