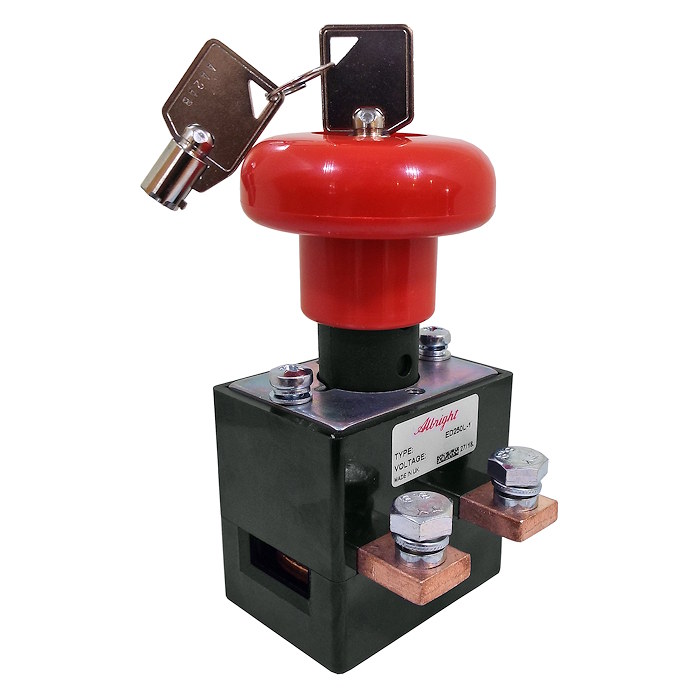

ED250L-1 Albright HD Emergency Stop Switch with Key 250A 48V Maximum

£67.39  Excl. VAT
  (£80.87 Inc. VAT)
 Excl. VAT

Earn 67 Loyalty Points
No stock


Weight:  560 g


Model:  ED250L-1
Bar Code:  DNA
Part Number:  ED250L-1
Brand:  Albright
Colour  Black/Red
Voltage  12V to 48V DC
Amperage  250A
Material  Copper/Silver/Bakelite

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


Albright heavy-duty 250 Amps battery disconnect switch with key.

  • Rated: 250A, 48Vdc maximum.
  • Single-pole, single-throw battery switch suitable for 12V, 24V, 36V and 48Vdc circuits.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • It is supplied with two keys.
  • For these versions, a key is necessary for the knob to be moved from the off position to the on position.
For a version without a lock, use ED250-1

About The Albright ED250L Stop Switches

 Once in the 'ON' position, the switch key can be removed, and the unit will remain locked until the key is used again to unlock it. Suitable for voltages up to 48Vdc, commonly used on 12V, 24V and 48Vdc electric vehicle systems.

A typical comment regarding its big red button appearance is that it's obnoxious, a very apt description; when you need to kill a circuit in an emergency, you need the button to be obvious and obnoxious. Many OEMs agree and will fit the Albright emergency switchgear as standard equipment.

 This lockable version features a key that is necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted
Device Type SPST Emergency Stop
Switch With Key
Thermal Current Rating (Ith) 250 Amps
Intermittent Current Rating 30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A
Overload Currents
that can be Ruptured
1000A at 48V D.C.
Maximum Recommended
Contact Voltage
48V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 560g
