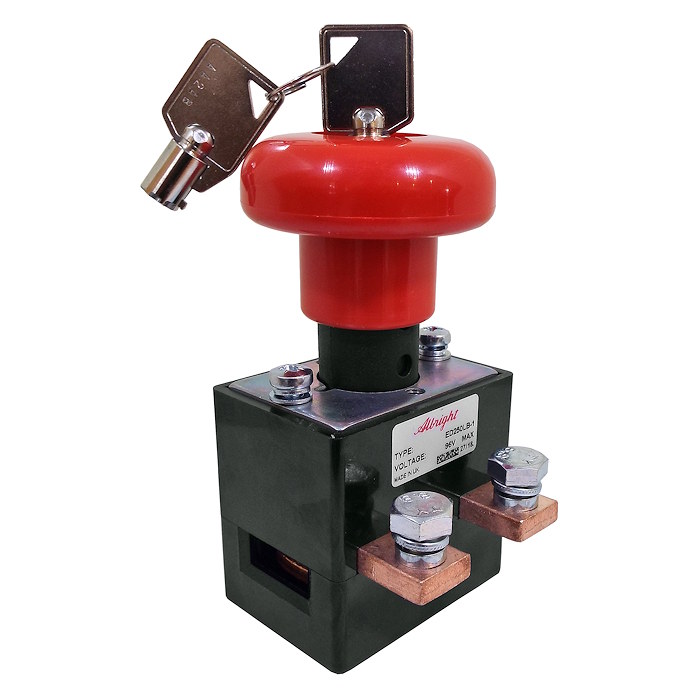

ED250LB-1 Albright HD Emergency Stop Switch with Key 250A 96V Maximum

£62.56  Excl. VAT
  (£75.07 Inc. VAT)
 Excl. VAT

Earn 62 Loyalty Points
1 in stock


Weight:  560 g


Model:  ED250LB-1
Bar Code:  DNA
Part Number:  ED250LB-1
Brand:  Albright
Colour  Black/Red
Voltage  12V to 96V DC
Amperage  250A
Material  Copper/Silver/Bakelite

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


Albright heavy-duty 96 Volts dc maximum battery disconnect switch with key.

  • Rated: 250A, 96Vdc maximum.
  • Single-pole, single-throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • It is supplied with two keys.
  • For these versions, a key is necessary for the knob to be moved from the off position to the on position.
For a version without the lock, use ED250B-1

About The Albright ED250LB Stop Switches

 Once in the 'ON' position, the switch key can be removed. Thereafter the knob may be depressed to the off position, where it will automatically lock, remaining locked until the key is used again to unlock it. Suitable for voltages up to 96Vdc, commonly used on 12V, 24V and 96Vdc electric vehicle systems.

A typical comment regarding its big red button appearance is that it's obnoxious, a very apt description; when you kill a circuit in an emergency, you need the button to be evident and obnoxious. Many OEMs agree and will fit the Albright emergency switchgear as standard equipment.

 This lockable version features a key necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted
Device Type SPST Emergency Stop
Switch With Key
Thermal Current Rating (Ith) 250 Amps
Intermittent Current Rating 30% Duty 455A
40% Duty 395A
50% Duty 355A
60% Duty 325A
70% Duty 300A
Overload Currents
that can be Ruptured
1000A at 96V D.C.
Maximum Recommended
Contact Voltage
96V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
30mV
Operating Ambient Temperature -40 to +60℃
Weight 560g
