1.00mm² Red & Black 8.75A Auto Twin-core Round PVC Cable | Re: 0-952-00

£25.23 Excl. VAT

RRP ~~£29.56~~ Excl. VAT

(£30.28 Inc. VAT)

Initial Savings

£4.33

Earn 25 Loyalty Points

Select Option

Available

Model

0-952-00F

Bar Code

5056119168785

Part Number

0-952-00F

Brand

Durite

Colour

Red/Black

Voltage

12V/24V DC

Amperage

8.75A

Material

Copper/PVC

Ship Weight

2.26 kg

Durite 8.75A Black and Red standard twin-core automotive cables in a round moulded sheath for a vehicle wiring loom. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

1mm² (17AWG) Black and Red.
8.75 Amps twin-core automotive cables and vehicle wiring.
14 copper strands at 0.30mm.
Outside Diameter (OD): 7.00mm.
Manufactured to BS6862-1:1971.
Roll length: 30m and 100m options.

About the 0-952-00 1.00mm² Black and Red PVC Electric Cables

Arc Components Limited presents the 0-952-00, Durite's light-duty 8.75A Black Negative (-) and Red Positive (+) twin-core automotive cables, ideal for your vehicle's connection to electrical equipment with a low load requirement.

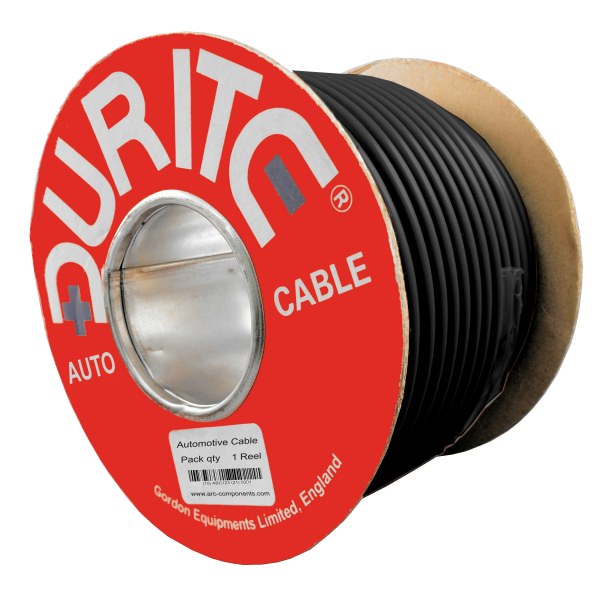

This high-quality PVC round sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready-use wiring racks. It is 1.0mm² (17 AWG) and features two 14 strands of 0.30mm separate copper wires bound together in a PVC sleeve and then moulded into a round PVC sheath, with an outside diameter of 7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 8.75 Amps per cable.

The Durite 0-952-00 twin cables are commonly used as conductor wires on low-amperage 12V-24V electrical equipment.

Specifications

Type	Twin-core standard automotive wiring
Current Rating	8.75 Amps
Insulation Colour	Red and Black
Wire	14/0.30mm copper
Cross-section	1.00mm² (17 AWG)
Voltage	For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance	18.9mΩ/m at 20℃
Insulation	Hard-grade PVC offers good resistance to abrasion and cut-through.
Outside Diameter	7.0mm
Temperature	Minus 30 to +70℃
Length of Cable	30 or 100 Metre Options
Approvals	BS 6862-1:1971
Weight	2.28Kg/4.45Kg
