0.65mm² Red-Black 5.75A Auto Twin Round PVC Cable | Re: 0-951-51

0.65mm² Red-Black 5.75A Auto Twin Round PVC Cable | Re: 0-951-51
0.65mm² Red-Black 5.75A Auto Twin Round PVC Cable | Re: 0-951-51
£19.24 Excl. VAT
RRP £21.86 Excl. VAT
Initial Savings
(£23.09 Inc. VAT)
Earn 19 Loyalty Points
Bar Code
Part Number
12V/24V DC
1.82 kg

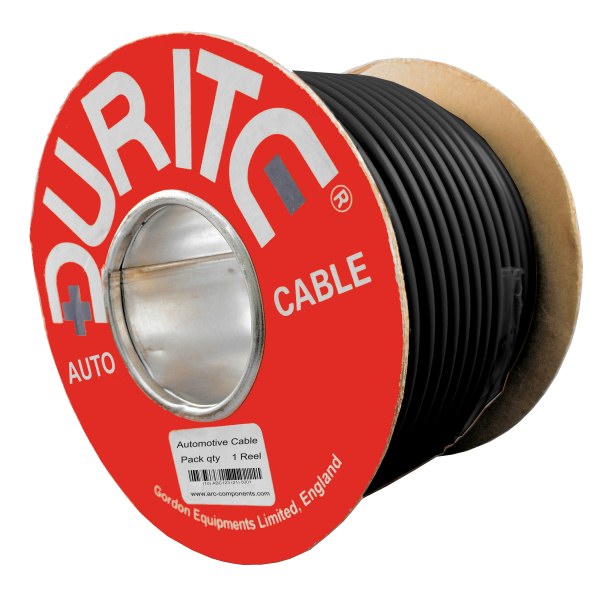

 Durite 5.75A Black and Red standard twin-core automotive cables in a round moulded sheath for a vehicle wiring loom. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • .65mm² (19AWG) Black and Red.
  • 5.75 Amps twin-core automotive cables and vehicle wiring.
  • 9 copper strands at 0.30mm.
  • Outside diameter: 6.5mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m.

About the 0-951-51 0.65mm² Black and Red PVC Electric Cables

 Arc Components Limited presents the 0-951-51, Durite's light-duty 5.75A Black Negative (-) and Red Positive (+) twin-core automotive cables, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC round sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready-use wiring racks. It is 0.65mm² (19 AWG) and features two 9 strands of 0.30mm separate copper wires bound together in a PVC sleeve and then moulded into a round PVC sheath, with an outside diameter of 6.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 5.75 Amps per cable.

 The Durite 0-951-51 twin cables are commonly used as conductor wires on low-amperage 12V-24V electrical equipment.


Type Twin-core standard automotive wiring
Current Rating 5.75 Amps
Insulation Colour Red and Black
Wire 9/0.30mm copper
Cross-section 0.65mm² (19 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 29.4mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Outside Diameter   6.5mm
Temperature Minus 30 to +70℃
Length of Cable 30 Metres
Approvals BS 6862-1:1971
Weight 1.88Kg
