1.00mm² Red & Black 16.50A Thin Wall Twin-core Flat Cable | Re: 0-951-50

1.00mm² Red & Black 16.50A Thin Wall Twin-core Flat Cable | Re: 0-951-50
1.00mm² Red & Black 16.50A Thin Wall Twin-core Flat Cable | Re: 0-951-50
1.00mm² Red & Black 16.50A Thin Wall Twin-core Flat Cable | Re: 0-951-50
£22.69 Excl. VAT
RRP £25.78 Excl. VAT
Initial Savings
(£27.23 Inc. VAT)
Earn 22 Loyalty Points
Bar Code
Part Number
12V/24V DC
1.09 kg

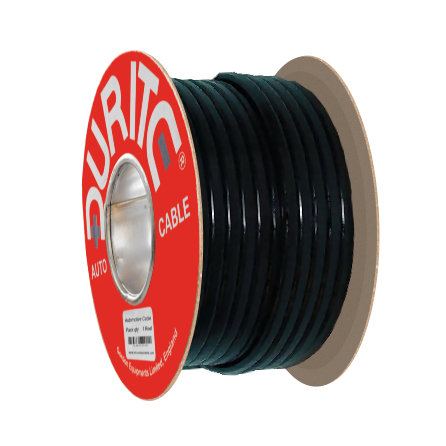

 Durite 16.5A Black and Red Thin Wall twin-core automotive cables in a flat moulded sheath for a vehicle wiring loom. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 1mm² (17AWG) Black and Red.
  • 16.5 Amps twin-core automotive cables and vehicle wiring.
  • 32 copper strands at 0.20mm.
  • Outside measurement: 5mm x 3mm.
  • Manufactured to ISO6722:2006 Class B (thin wall).
  • Roll length: 30m or 100m.

About the 0-951-50 1.00mm² Black and Red Thin Wall PVC Electric Cables

 Arc Components Limited presents the 0-951-50 and 3-951-50, Durite's light-duty 16.5A Black Negative (-) and Red Positive (+) twin-core automotive Thin Wall cables, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC flat sheathed, copper-cored electrical wire is supplied on a 30m or 100m cardboard reel, perfect for storage in your van or workshop ready-use wiring racks. It is 1.0mm² (17 AWG) and features two 32 strands of 0.20mm separate copper wires bound together in a Thin Wall PVC sleeve and then moulded into a flat PVC sheath, with an outside measurement of 5.0mm x 3.0mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722:2006 Class B (thin wall), reduces the weight and volume of vehicle cable looms, and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps per cable.

 The Durite 0-951-50 and 3-951-50 twin cables are commonly used as conductor wires on low-amperage 12V-24V electrical equipment.


Type Twin-core standard automotive wiring
Current Rating 16.50 Amps
Insulation Colour Red and Black
Wire 32/0.20mm copper
Cross-section 1.00mm² (17 AWG)
Voltage For 12 and 24 Volts DC systems (60 Volts DC Max.)
Resistance 18.5mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Outside Measurement   5.00mm x 3.00mm
Temperature Minus 30 to +70℃
Length of Cable 30 and 100 Metre roll options
Approvals ISO6722:2006 Class B (thin wall)
Weight 1.17Kg/4Kg
