0-011-52 Superseal Connector 1.5mm Male Blade Pin Housing 2 Way

£2.39  Excl. VAT
  (£2.87 Inc. VAT)
RRP:  £2.88
Savings before Cart:  £0.49
Earn 2 Loyalty Points
Available

Weight:  10g


Model:  0-011-52
Bar Code:  5056119102819
Part Number:  0-011-52
Brand:  Durite
Colour:  Black
Amperage:  14A
Material:  Polyamide/Glass

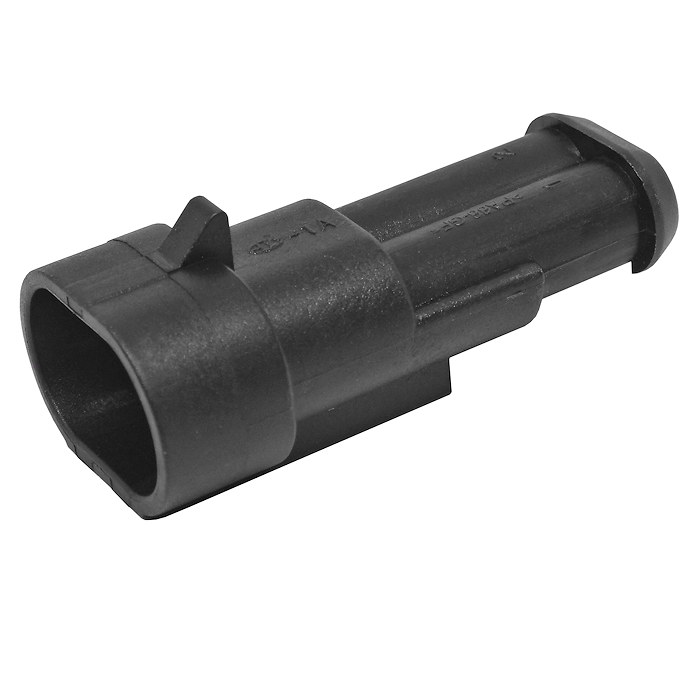

 Superseal 1.5mm male blade housing.

  • 2 way connection.
  • Supplied with seals and terminals.
  • Rated at 14A maximum.
  • Suitable for cable size 0.65mm² and 1.00mm², 1.50mm² maximum (20 to 16 AWG).
  • Single folded phosphor bronze, tin plated flat pin terminals.
  • Sold in single packs.

Associated Parts

  • 0-011-62 female pin mate connector.
  • 0-011-50 pack of 10 Superseal male pins.
  • 0-703-51 ratchet crimping tool for Econoseal and Superseal terminals.

About the Superseal Connector

 Twin tin plated phosphor bronze terminal, 1.5mm auto electric multiple Superseal male pin connectors, with glass filled (for strength) polyamide 6.6 housings and disconnect clip action. Used for automotive lighting systems and circuits requiring low amperage load and connectivity.

 The Superseal auto electrical connectors fast became an industry standard due to their watertight properties conforming to IEC 529 I.P. 6.7 standards, which reduces terminal degradation and in turn reduces intermittent faults.
