0-943-75 50m x 2.00mm² White-Red 17.5A Auto Single-core Cable

0-943-75 50m x 2.00mm² White-Red 17.5A Auto Single-core Cable
0-943-75 50m x 2.00mm² White-Red 17.5A Auto Single-core Cable
£29.21 Excl. VAT
RRP £34.22 Excl. VAT
Initial Savings
£5.01
(£35.05 Inc. VAT)
Earn 29 Loyalty Points

Available
Model
0-943-75
Bar Code
5056119133134
Part Number
0-943-75
Brand
Durite
Colour
White/Red
Voltage
12V/24V DC
Amperage
17.5A
Material
Copper/PVC
Weight
1.40 kg

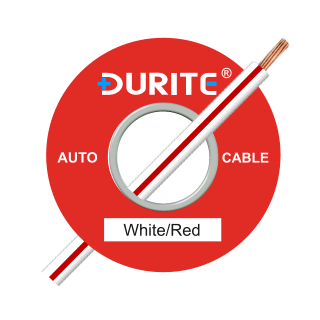

 Durite 17.5A White with a Red tracer standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 2mm² (14AWG) White/Red (White cable, Red stripe).
  • 17.5 Amps single-core automotive cable and vehicle wiring.
  • 28 copper strands at 0.30mm.
  • Outside diameter: 3.4mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-943-75 2.00mm² White/Red PVC Electric Cable

 Arc Components Limited presents the 0-943-75, Durite's light-duty 17.5A White with a Red tracer line automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.4mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 17.5 Amps.

 The Durite 0-943-75 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core standard automotive wiring
Current Rating
17.5 Amps
Insulation Colour
White with a Red tracer stripe
Wire
28/0.30mm copper
Cross-section
2.00mm² (14 AWG)
Voltage
For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance
9.4mΩ/m at 20℃
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
3.4mm
Temperature
Minus 30 to +70 degrees C
Length of Cable
50 Metres
Approvals
BS 6862-1:1971
Weight
1.4Kg
