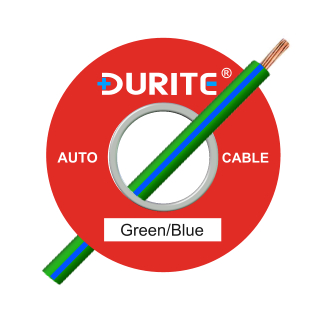

Durite 8.75A Green with a Blue tracer standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 1mm² (17AWG) Green/Blue (Green cable, Blue stripe).
- 8.75 Amps single-core automotive cable and vehicle wiring.
- 14 copper strands at 0.30mm.
- Outside diameter: 2.7mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.
About the 0-942-42 1.00mm² Green/Blue PVC Electric Cable
Arc Components Limited presents the 0-942-42, Durite's light-duty 8.75A Green with a Blue tracer line automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 14 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 8.75 Amps.
The Durite 0-942-42 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
Specifications
| Type | Single-core standard automotive wiring |
| Current Rating | 8.75 Amps |
| Insulation Colour | Green with a Blue tracer stripe |
| Wire | 14/0.30mm copper |
| Cross-section | 1.00mm² (17 AWG) |
| Voltage | For 12 and 24 Volts DC systems (100 Volts DC Max.) |
| Resistance | 18.9mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |
| Overall Diameter | 2.7mm |
| Temperature | Minus 30 to +70℃ |
| Length of Cable | 50 Metres |
| Approvals | BS 6862-1:1971 |
| Weight | 0.82Kg |
