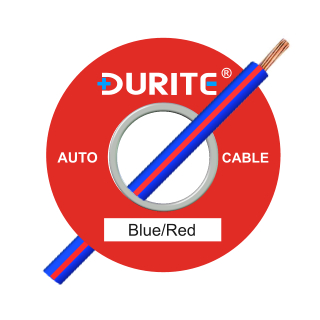

0-933-25 100m x 2.00mm˛ Blue-Red 25A Auto Single-core Cable
Weight: 2.28 kg
Model: 0-933-25
Bar Code: 5056119132083
Part Number: 0-933-25
Brand: Durite
Colour Blue/Red
Amperage 25A
Material Copper/PVC
Single core, 2mm² thin wall automotive blue with a red tracer PVC sheathed electric cable.
- Roll length 100m.
- 2.00mm² blue-red (blue cable, red stripe).
- 25A automotive single-core cable.
- 28 strands 0.30mm.
- Outside diameter: 2.8mm.
- To ISO 06722-4.
About The 2mm² Blue and Red Thin Wall Electric Cable
100 Metre reel of 25A blue with a red tracer line auto electrical thin wall cable. Used for light to medium current loads, the 2mm² ‘thin wall’ automotive wire has a 28 strands, 0.30mm configuration, with a current load capability to a maximum of 25A continuous. With a reduced but harder PVC coating, thin wall cabling is now standard use for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electric cables, manufactured and tested to ISO6722-4 industry standards, reduce the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils.
Used as a conductor wire on low amperage electrical equipment and wiring looms.
Specifications
| Type | Single core thin wall cable |
| Current Rating | 25 Amps |
| Insulation Colour | Blue with a red tracer line |
| Wire | 28/0.30mm copper |
| Cross section | 2.00mm² |
| Voltage | 60 Volts DC maximum |
| Resistance | 9.4mΩ/m at 20℃ |
| Insulation | Hard grade PVC to BS6746 Type 5. |
| Overall Diameter | 2.8mm |
| Temperature | Minus 40 to +105℃
(120℃ intermittent) |
| Length of Cable | 100 Metres |
| Approvals | ISO6722/4 |
| Weight | 2.28Kg |
