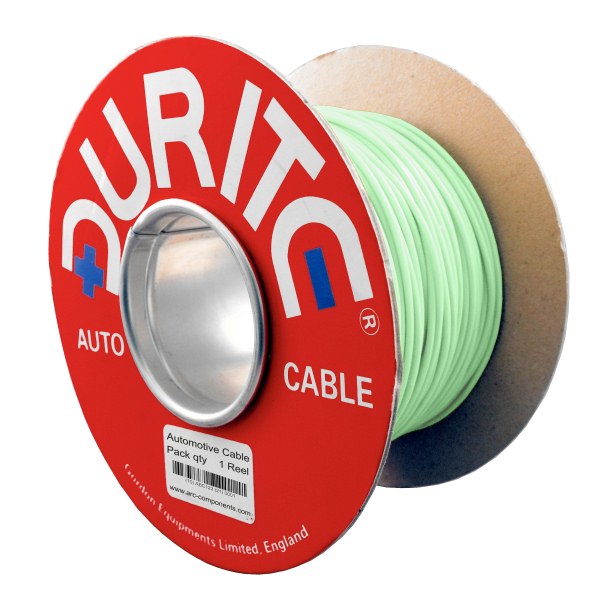

0-931-40 100m x 0.75mm˛ Light Green 14A Single-core Thin Wall Auto Electric Cable

£23.26  Excl. VAT
  (£27.91 Inc. VAT)
RRP:  £26.14  Excl. VAT
Initial Savings:  £2.88
Earn 23 Loyalty Points
Available


Weight:  920 g


Model:  0-931-40
Bar Code:  5056119131475
Part Number:  0-931-40
Brand:  Durite
Colour  Light Green
Amperage  14A
Material  Copper/PVC


 Durite 14A Light Green automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • Roll length: 100m.
  • 0.75mm² Light Green.
  • 14 Amps automotive single-core electric cable.
  • 24 strands 0.20mm.
  • Outside diameter: 1.9mm.
  • To ISO 6722-1:2011.

About the .75mm² Light Green Thin Wall Electric Cable

 100 Metre reel of Thin Wall light-duty 14A Light Green auto electrical cable. Used for light current loads, the .75mm² is ideal for vehicle wiring requiring a maximum load of 14 Amps continuous. Used as a conductor wire on low amperage electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 14 Amps
Insulation Colour Light Green
Wire 24/0.20mm copper
Cross-section 0.75mm²
Voltage 60 Volts DC maximum
Resistance 24.7mΩ/m at 20℃
Insulation Hard grade PVC, which offers good resistance to abrasion and cut-through.
Overall Diameter   1.9mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722-1:2011
Weight 920g
