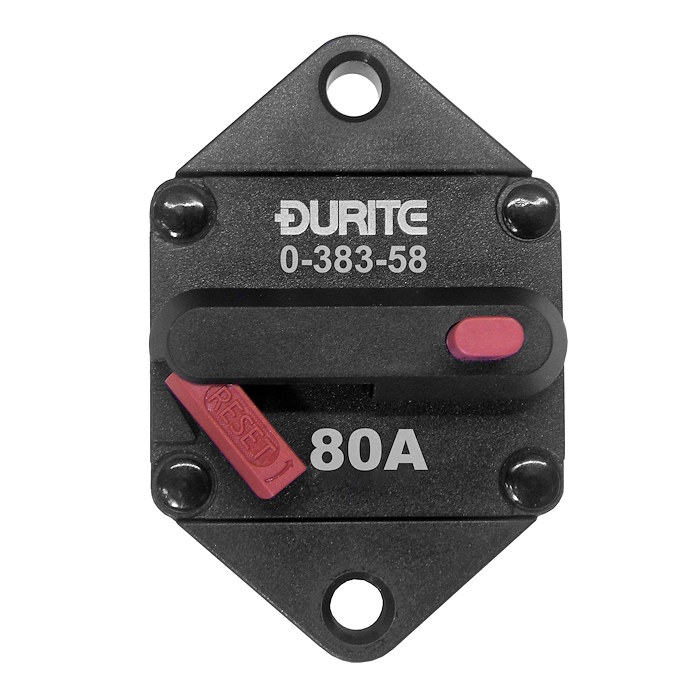

0-383-58 Durite 12V-24V DC 80A Panel Mounted Circuit Breaker

£33.50  Excl. VAT
  (£40.20 Inc. VAT)
RRP:  £37.64  Excl. VAT
Initial Savings:  £4.14
Earn 33 Loyalty Points
Available


Weight:  100 g





Model:  0-383-58
Bar Code:  5056119151244
Part Number:  0-383-58
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  80A
Material:  Thermoplastic/Brass/Copper/Steel


 Durite 80 Amps panel mounted circuit breakers for 12V-24Vdc auxiliary and accessory circuits found on cars, vans, HGV trucks, buses, RVs and marine vehicle battery charger/audio systems.

  • 80A manual reset protection for ignition circuits.
  • Thermoplastic housing.
  • Panel mounted version.
  • It is rated for a 12-24V DC application.
  • Quarter-inch terminal bolts
  • Pack Quantity: 1 piece.

Related Products

  • 0-383-99 Steel 90° angled mounting bracket.
  • 0-383-98 Mounting pad.

Dimensions

  • Height: 74.5mm
  • Width: 49mm
  • Front panel depth (including button): Approximately 27mm
  • Rear panel depth (including bolts): Approximately 30mm

Specifications

Type Single-pole thermal device
Amps 80A
Voltage 12Vdc to 24Vdc
Colour Black
Body Material Polybutylene Terephthalate (PBT 4830)
Operating Temperature -32°C to 82°C (-25°F to 180°F)
Storage Temperature -34°C to 149°C (-30°F to 300°F)
Weight 100g
