0-379-77 Brown Male PAL Long Leg Automotive Fuse 70A

£4.58 Excl. VAT
RRP £5.36 Excl. VAT
Initial Savings
£0.78
(£5.50 Inc. VAT)
Earn 4 Loyalty Points

Available
Model
0-379-77
Bar Code
5056119111316
Part Number
0-379-77
Brand
Durite
Colour
Brown
Voltage
12V/24V DC
Amperage
70A
Material
Thermoplastic/Copper
Weight
10 g

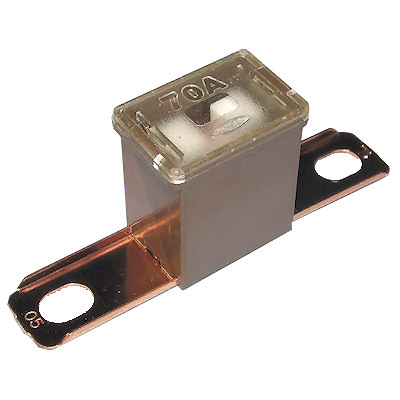

 Durite brown long-legged 70 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down long leg cartridge fuse.
  • Colour Coded: Brown.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 70A.
  • Blow Rating 140A.
  • Pack Quantity: 1 piece.

Dimensions

  • Length including legs: 62mm.
  • Body depth: 15mm.
  • Body length: 20mm.
  • Body height: 21mm.
  • Hole centres: 48mm.

About The Brown 70A Bolt Down Cartridge Fuse

 Durite replacement brown 70 Amps bolt down fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 70A continuous use is based on a circuit constant load being always-on, the 140A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
