0-379-57 Brown Male PAL Straight Leg Automotive Fuse 70A

0-379-57 Brown Male PAL Straight Leg Automotive Fuse 70A
0-379-57 Brown Male PAL Straight Leg Automotive Fuse 70A
£4.99 Excl. VAT
RRP £5.84 Excl. VAT
(£5.99 Inc. VAT)
Initial Savings
£0.85
Earn 4 Loyalty Points

Available
Model
0-379-57
Bar Code
5056119111156
Part Number
0-379-57
Brand
Durite
Colour
Brown
Voltage
12V/24V DC
Amperage
70A
Material
Thermoplastic/Copper
Ship Weight
10 g

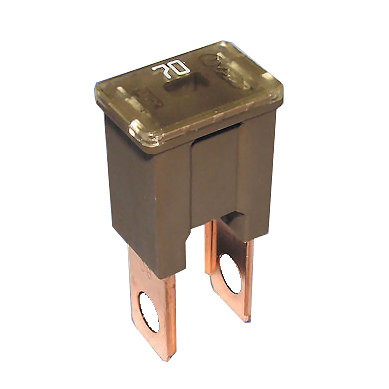

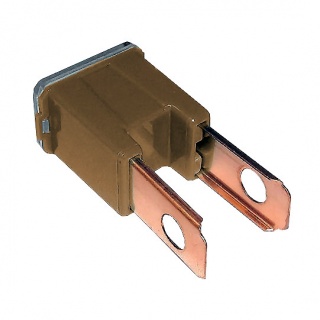

 Durite brown straight-legged 70 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down or plug-in straight leg cartridge fuse.
  • Colour Coded: Brown.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 70A.
  • Blow Rating 140A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height including legs: 43mm.
  • Body: 20mm x 15mm.

About The Brown 70A Straight Leg Cartridge Fuse

 Durite replacement brown 70 Amps straight leg bolt down or plug-in fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 70A continuous use is based on a circuit constant load being always-on, the 140A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.




Delivery

UK Mainland Postage

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.

 We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use FedEx, UPS, Parcel Force, and other major courier services for larger and more valuable consignments.


International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Also Bought

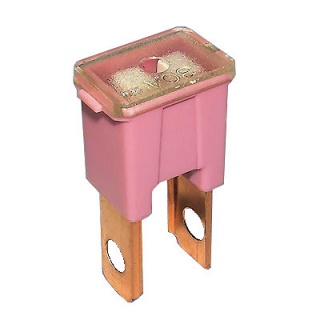

0-379-53 Pink Male PAL Straight Leg Automotive Fuse 30A

Durite Pink male PAL type straight leg cartridge fuse. Bolt-down fuse with a continuous rating of 30A and a blow rating of 60A.

Re: 0-379-53
£4.99
Excl VAT
No stock

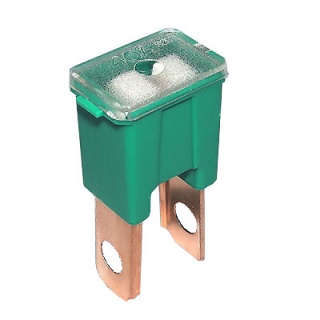

0-379-54 Green Male PAL Straight Leg Automotive Fuse 40A
