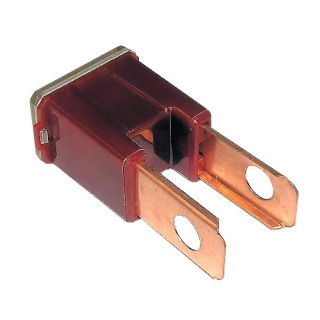

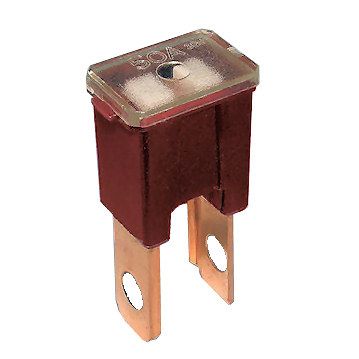

0-379-55 Red Male PAL Straight Leg Automotive Fuse 50A

£4.38  Excl. VAT
  (£5.26 Inc. VAT)
RRP:  £5.03
Savings before Cart:  £0.65
Earn 4 Loyalty Points
Available


Weight:  10 g


Model:  0-379-55
Bar Code:  5056119111132
Part Number:  0-379-55
Brand:  Durite
Colour:  Red
Voltage:  32V DC Max.
Amperage:  50A
Material:  Thermoplastic/Copper


 Durite red straight-legged 50 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down or plug-in straight leg cartridge fuse.
  • Colour Coded: Red.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 50A.
  • Blow Rating 100A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height including legs: 43mm.
  • Body: 20mm x 15mm.

About The Red 50A Straight Leg Cartridge Fuse

 Durite replacement red 50 Amps straight leg bolt down or plug-in fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 50A continuous use is based on a circuit constant load being always-on, the 100A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
