0-379-73 Pink Male PAL Long Leg Automotive Fuse 30A

£4.50  Excl. VAT
  (£5.40 Inc. VAT)
RRP:  £5.06  Excl. VAT
Initial Savings:  £0.56
Earn 4 Loyalty Points
Available


Weight:  10 g





Model:  0-379-73
Bar Code:  5056119111279
Part Number:  0-379-73
Brand:  Durite
Colour:  Pink
Voltage:  12V/24V DC
Amperage:  30A
Material:  Thermoplastic/Copper

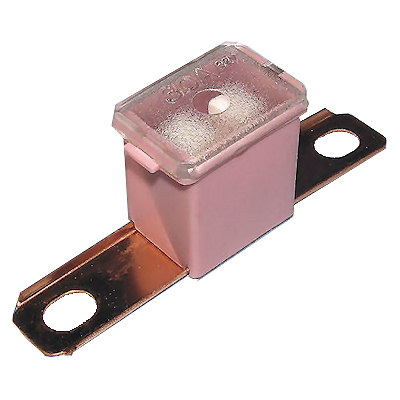

 Durite pink long-legged 30 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down long leg cartridge fuse.
  • Colour Coded: Pink.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 30A.
  • Blow Rating 60A.
  • Pack Quantity: 1 piece.

Dimensions

  • Length including legs: 62mm.
  • Body depth: 15mm.
  • Body length: 20mm.
  • Body height: 21mm.
  • Hole centres: 48mm.

About The Pink 30A Bolt Down Cartridge Fuse

 Durite replacement pink 30 Amps bolt down fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 30A continuous use is based on a circuit constant load being always-on, the 60A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
