0-379-80 Blue Male PAL Long Leg Automotive Fuse 100A

£4.50  Excl. VAT
  (£5.40 Inc. VAT)
RRP:  £5.06  Excl. VAT
Initial Savings:  £0.56
Earn 4 Loyalty Points
Available


Weight:  10 g





Model:  0-379-80
Bar Code:  5056119111330
Part Number:  0-379-80
Brand:  Durite
Colour:  Blue
Voltage:  12V/24V DC
Amperage:  100A
Material:  Thermoplastic/Copper

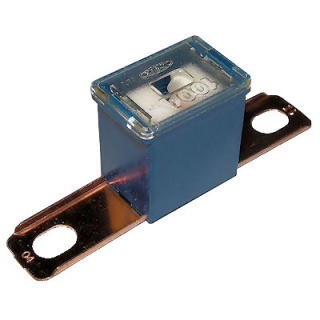

 Durite blue long-legged 100 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down long leg cartridge fuse.
  • Colour Coded: Blue.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 100A.
  • Blow Rating 200A.
  • Pack Quantity: 1 piece.

Dimensions

  • Length including legs: 62mm.
  • Body depth: 15mm.
  • Body length: 20mm.
  • Body height: 21mm.
  • Hole centres: 48mm.

About The Blue 100A Bolt Down Cartridge Fuse

 Durite replacement blue 100 Amps bolt down fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 100A continuous use is based on a circuit constant load being always-on, the 200A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
