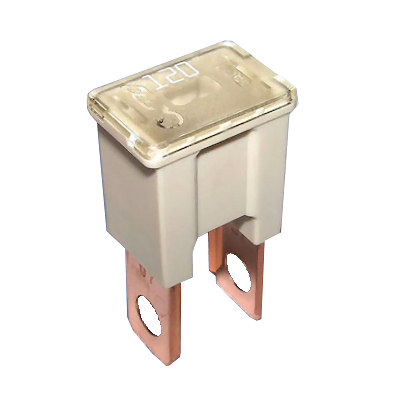

0-379-62 White Male PAL Straight Leg Automotive Fuse 120A

£4.38  Excl. VAT
  (£5.26 Inc. VAT)
RRP:  £5.03
Savings before Cart:  £0.65
Earn 4 Loyalty Points
Available


Weight:  10 g


Model:  0-379-62
Bar Code:  5056119111187
Part Number:  0-379-62
Brand:  Durite
Colour:  White
Voltage:  32V DC Max.
Amperage:  120A
Material:  Thermoplastic/Copper


 Durite white straight-legged 120 Amps PAL type automotive cartridge fuse.

  • Type: Bolt down or plug-in straight leg cartridge fuse.
  • Colour Coded: White.
  • Voltage rating: 32Vdc Maximum.
  • Continuous Rating 120A.
  • Blow Rating 240A.
  • Pack Quantity: 1 piece.

Dimensions

  • Height including legs: 43mm.
  • Body: 20mm x 15mm.

About The White 120A Straight Leg Cartridge Fuse

 Durite replacement white 120 Amps straight leg bolt down or plug-in fuses are for vehicle fuseboxes and panels and are used to replace a blown fuse position or to add to a vehicles breakdown kit.

 The ratings for 120A continuous use is based on a circuit constant load being always-on, the 240A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
