0-377-60 Pack of 2 Blue MAXI Blade Fuses 60A

£2.90  Excl. VAT
  (£3.48 Inc. VAT)
RRP:  £3.33  Excl. VAT
Savings before Cart:  £0.43
Earn 2 Loyalty Points
Available


Weight:  20 g


Model:  0-377-60
Bar Code:  5056119110661
Part Number:  0-377-60
Brand:  Durite
Colour:  Blue
Voltage:  32V DC Max.
Amperage:  60A
Material:  PA66/Zinc Alloy

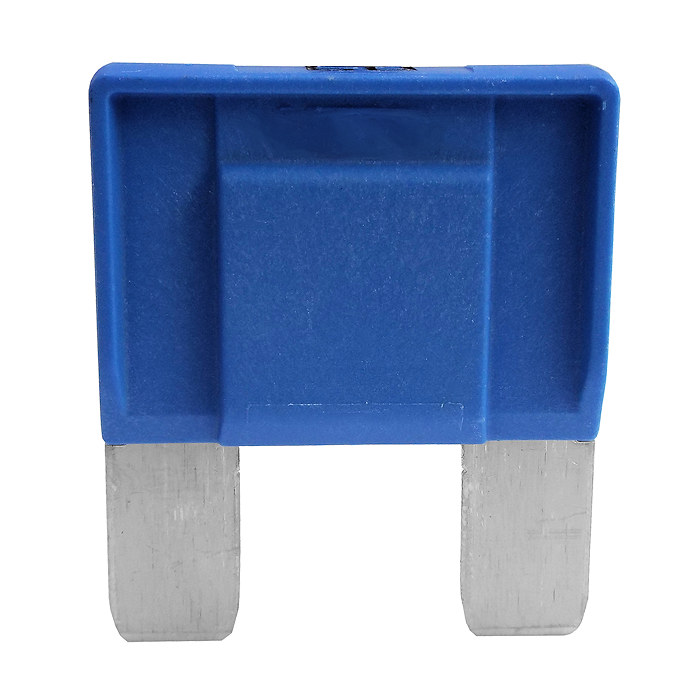

 Durite pack of 2 Blue MAXI blade fuses.

  • 60A continuous rating.
  • 120A blow rating.
  • Fits into fuse holder part numbers 0-377-00 and 0-377-90.
  • Pack quantity: 2 pieces.

Dimensions

  • Width: 29mm.
  • Height including blades: 34mm.
  • Thickness: 9mm.

About The 60 Amps Blue MAXI Blade Fuse

 As the largest of the automotive blade fuse family, the MAXI blade fuses offer an intermediate fuse solution based on the spade or blade fuse design, it is one of the largest types of blade fuses to use before having to switch up to heavy-duty load fuse-gear options.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
