0-377-20 Pack of 2 Yellow MAXI Blade Fuse 20A

£3.10  Excl. VAT
  (£3.72 Inc. VAT)
RRP:  £3.48  Excl. VAT
Initial Savings:  £0.38
Earn 3 Loyalty Points
Available


Weight:  20 g





Model:  0-377-20
Bar Code:  5056119110623
Part Number:  0-377-20
Brand:  Durite
Colour:  Yellow
Voltage:  12V/24V DC
Amperage:  20A
Material:  PA66/Zinc Alloy

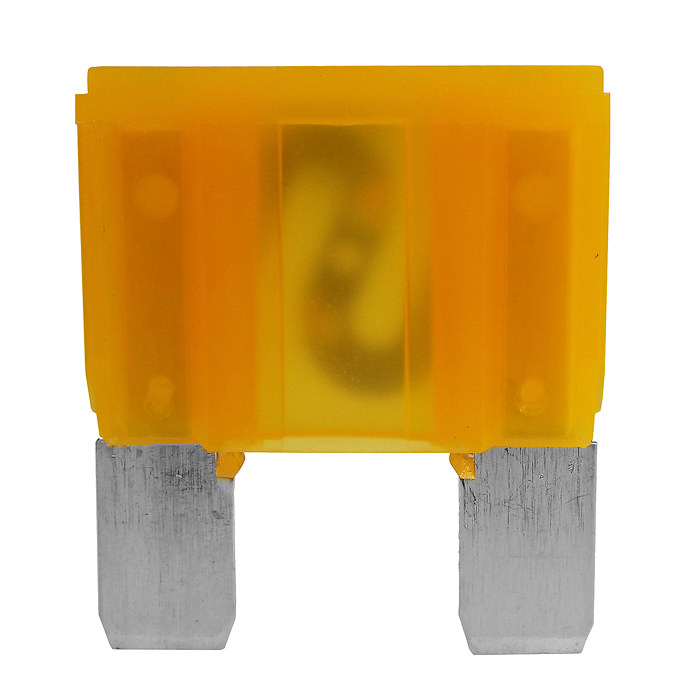

 Durite pack of 2 Yellow MAXI blade fuses.

  • 20A continuous rating.
  • 40A blow rating.
  • Fits into fuse holder part numbers 0-377-00 and 0-377-90.
  • Pack quantity: 2 pieces.

Dimensions

  • Width: 29mm.
  • Height including blades: 34mm.
  • Thickness: 9mm.

About The 20 Amps MAXI Blade Fuse

 As the largest of the automotive blade fuse family, the MAXI blade fuses offer an intermediate fuse solution based on the spade or blade fuse design, it is one of the largest types of blade fuses to use before having to switch up to heavy-duty load fuse-gear options.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
