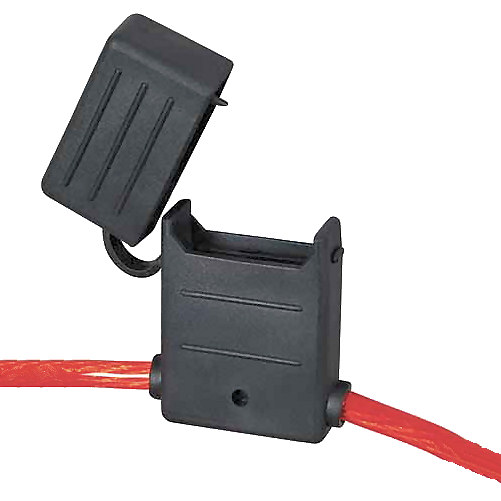

0-377-90 MAXI Blade Fuse Splash-proof Inline Fuse Holder

£5.20  Excl. VAT
  (£6.24 Inc. VAT)
RRP:  £5.84  Excl. VAT
Initial Savings:  £0.64
Earn 5 Loyalty Points
Available


Weight:  10 g





Model:  0-377-90
Bar Code:  5056119110692
Part Number:  0-377-90
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  100A
Material:  PA66/Brass/PVC


 Durite 12V-24Vdc auto electrical splashproof inline MAXI blade fuse holders.

  • The single fuse carrier is supplied with flying leads, continuously looped to keep clean in transit and allow for better positioning depending on where you cut the loop.
  • Maximum fuse rating: 100A continuous.
  • Maximum voltage: 32V DC
  • Maxi spade fuse holder with splashproof cover.
  • Pack quantity: 1 piece.

About The MAXI Blade Fuse Holder

 Durite's maxi blade or spade fuse carrier has been manufactured for an inline application. The unit has a flip-top lid for splash and weatherproof protection. The fuse holder incorporates flying leads and is suitable for MAXI blade fuses up to 100 Amps.

 As the largest of the automotive blade fuse family, the MAXI blade fuses offer an intermediate fuse solution based on the spade or blade fuse design. It is one of the largest types of blade fuses available to use before having to switch to the heavy-duty post-type fuse options.



Specifications

Type Maxi Blade Fuse Holder
Voltage 12 to 24 Volts DC (32 Volts DC Max.)
Current Rating 100 Amps - Continuous
Contact Resistance 50m Ohms Maximum
Insulation Resistance 500V DC 100M Ohms Min.
Dielectric Strength 1500V AC, 1 Minute
Operating Temperature -25°C to +85°C
Cable 350mm (loop) x 0.14mm (6.0mm CSA)
Weight 70g
