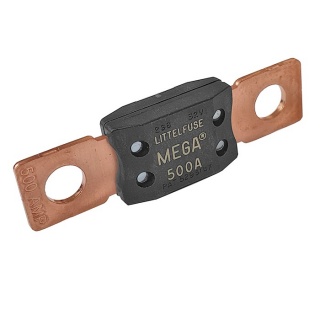

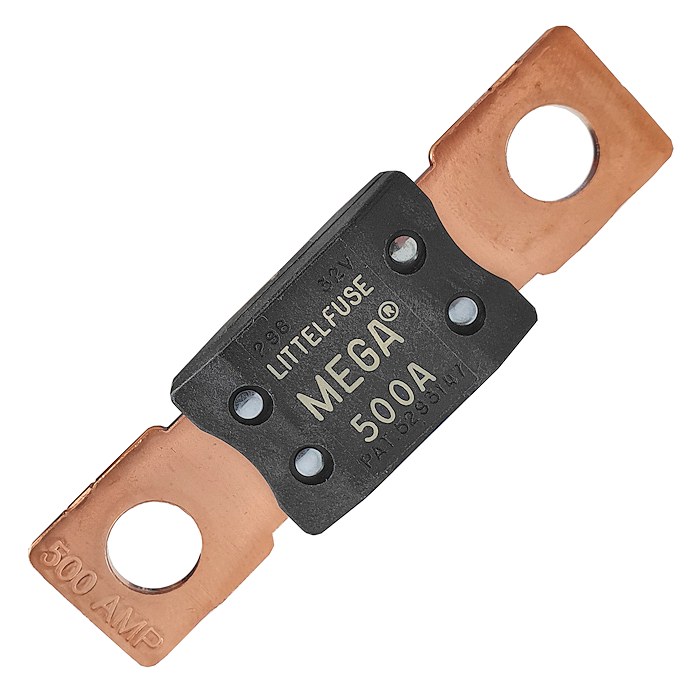

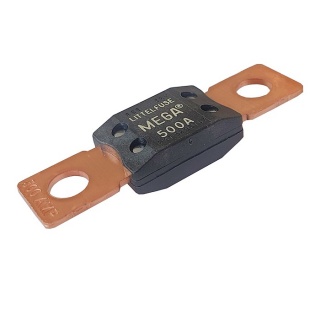

0-376-55 Cream MEGA Type Fuse 500A

£5.92  Excl. VAT
  (£7.10 Inc. VAT)
RRP:  £6.80
Savings before Cart:  £0.88
Earn 5 Loyalty Points
Available


Weight:  20 g


Model:  0-376-55
Bar Code:  5056119110555
Part Number:  0-376-55
Brand:  Durite
Colour:  Cream
Voltage:  32V DC Max.
Amperage:  500A
Material:  Copper/Tin/Thermoplastic


 Industry-standard and OEM quality 500 Amps cream MEGA® type fuse, used for heavy-duty circuit protection when high loads and heavy gauge automotive cables are used.

  • Colour Coded: Cream.
  • Fuse Rating: 500A continuous use.
  • Blow Rating: 1000A.
  • Interrupting Rating: 2000A at 32Vdc.
  • Voltage Rating: 32Vdc.
  • Operating Temperature Range: -40 to 125℃.
  • Mounting Torque: 12-18Nm M8.

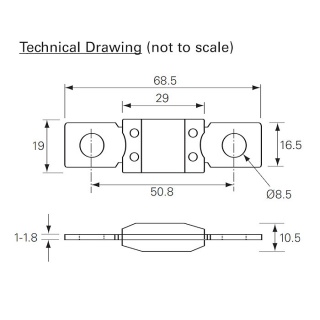

Dimensions

  • Length: 68.50mm.
  • Body Width: 19.00mm.
  • M8 Hole Centres: 50.8mm.

Associated Parts

  • 0-376-85 MEGA fuse holder.
  • 0-376-86 compact MEGA fuse holder.

About the 500 Amps MEGA® Type Fuses

 500A cream bolt down MEGA® type fuse from the Durite range of automotive fuses, ideal for battery and alternator protection on vehicles and industrial equipment.

 The 500A continuous rating gives high current circuit protection on auto electric equipment connected close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 1000A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type MEGA® type fuse
Voltage To 32 Volts DC
Voltage drop Less than 92mV
Interrupting rating 2000 Amps at 32 Volts DC
Colour code Cream
Current rating 500 Amps continuous
Blow rating (from cold) 1000 Amps intermittent
Body Material Plastic
Termination Copper
Operating temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Weight 15g
Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.

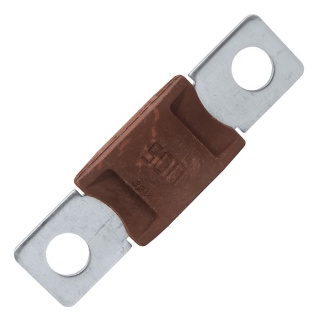

0-366-55 Durite Aftermarket Brown MEGA Type Fuse - 500A
0-366-55 Durite Aftermarket Brown MEGA Type Fuse - 500A

Standard aftermarket Brown MEGA type fuse for heavy-duty application. Fuse rating of 500 Amps for continuous use.

Available
 Reference: 0-366-55 £3.47   £3.03

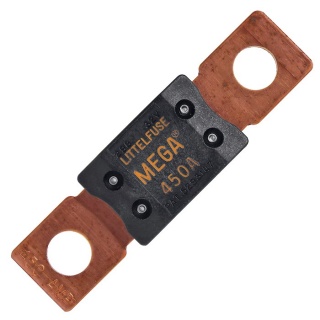

0-376-45 Dark Yellow MEGA Type Fuse 450A
