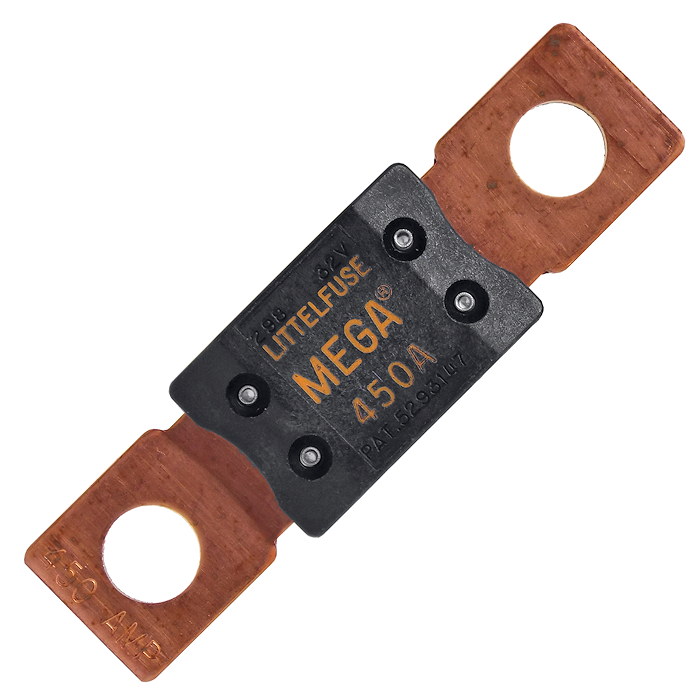

0-376-45 Dark Yellow MEGA Type Fuse 450A

£5.92  Excl. VAT
  (£7.10 Inc. VAT)
RRP:  £6.80
Savings before Cart:  £0.88
Earn 5 Loyalty Points
Available


Weight:  20 g


Model:  0-376-45
Bar Code:  5056119110531
Part Number:  0-376-45
Brand:  Durite
Colour:  Dark Yellow
Voltage:  32V DC Max.
Amperage:  450A
Material:  Copper/Polyphthalamide (PPA)


 Industry-standard and OEM quality 450 Amps dark yellow MEGA® type fuse, used for heavy-duty circuit protection when high loads and heavy gauge automotive cables are used.

  • Colour Coded: Dark yellow.
  • Fuse Rating: 450A continuous use.
  • Blow Rating: 900A.
  • Interrupting Rating: 2000A at 32Vdc.
  • Voltage Rating: 32Vdc.
  • Operating Temperature Range: -40 to 125℃.
  • Mounting Torque: 12-18Nm M8.

Dimensions

  • Length: 68.50mm.
  • Body Width: 19.00mm.
  • M8 Hole Centres: 50.8mm.

Associated Parts

  • 0-376-85 MEGA fuse holder.
  • 0-376-86 compact MEGA fuse holder.

About the 450 Amps MEGA® Type Fuses

 450A dark yellow bolt down MEGA® type fuse from the Durite range of automotive fuses, ideal for battery and alternator protection on vehicles and industrial equipment.

 The 450A continuous rating gives high current circuit protection on auto electric equipment connected close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 900A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type MEGA® type fuse
Voltage To 32 Volts DC
Voltage drop Less than 92mV
Interrupting rating 2000 Amps at 32 Volts DC
Colour code Dark yellow
Current rating 450 Amps continuous
Blow rating (from cold) 900 Amps intermittent
Body Material Plastic
Termination Copper
Operating temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Weight 15g
